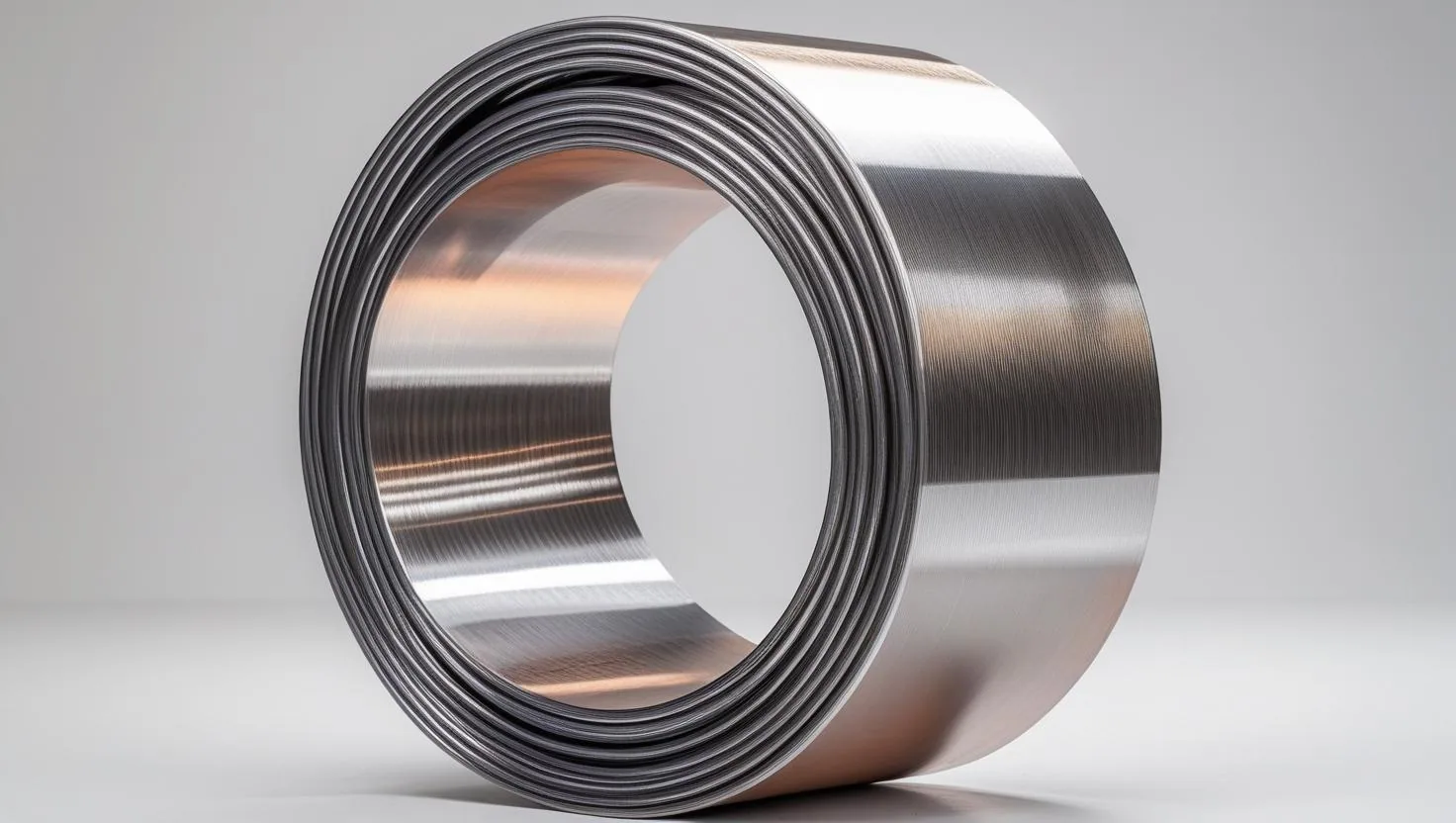

Hastelloy® Coil Supplier, Stockist and Exporter
Table of Contents
Aurico Alloys LLP supplies hastelloy® coil from ready stock in Mumbai to customers across India and in more than 40 export markets. Coil is the most economical way to buy sheet-gauge material when parts are blanked, roll-formed or slit to strip, because it removes the cut-length premium and keeps the surface consistent along the whole run.
Hastelloy® covers nickel-molybdenum and nickel-chromium-molybdenum alloys for the most aggressive acid and chloride service. In-house slitting, cut-to-length, levelling and edge conditioning let us ship coil already sized for your press or roll former.
Sizes and Specifications
| Size range | Thickness 0.05 mm to 6.0 mm, width 3 mm to 1250 mm, supplied in slit coil, mill-edge coil or narrow strip. Coil weights and inside diameters are set to suit your decoiler. |
|---|---|
| Types and finishes | Available in annealed and pickled, bright annealed, cold rolled 2B, and No. 4 polished finishes, with edge condition slit, deburred or rolled to order. |
| Specifications | ASTM B906 / A240 / B265 as applicable to the grade, with ASME SB equivalents. |
| Certification | EN 10204 3.1 mill test certificate; 3.2 and third-party inspection on request |
| Origin | Indian and imported mills, fully traceable by heat number |
Specifications by Grade – Plate, sheet and strip
A specification is written for a product form. The standards below are the ones that cover plate, sheet and strip; the plate, bar and tube specifications for these grades are different documents and are listed on their own pages.
| Grade | UNS | Plate, sheet and strip specification |
|---|---|---|
| B-2 | N10665 | ASTM B333 |
| C-4 | N06455 | ASTM B575 |
| C-22 | N06022 | ASTM B575 |
| C-276 | N10276 | ASTM B575 |
| C-2000 | N06200 | ASTM B575 |
| G-30 | N06030 | ASTM B582 |
| N | N10003 | ASTM B434 / AMS 5607 |
| X | N06002 | ASTM B435 / AMS 5536 |
Grades and International Equivalents
| Grade | UNS | Werkstoff (W.Nr.) |
|---|---|---|
| Hastelloy C-276 | N10276 | 2.4819 |
| Hastelloy C-22 | N06022 | 2.4602 |
| Hastelloy C-2000 | N06200 | 2.4675 |
| Hastelloy B-2 | N10665 | 2.4617 |
| Hastelloy B-3 | N10675 | 2.4600 |
| Hastelloy X | N06002 | 2.4665 |
Chemical Composition
C-276 carries 15-17% Mo and 14.5-16.5% Cr with tungsten and low carbon to resist sensitisation; C-22 raises chromium to 20-22.5% for oxidising media; the B-series runs 26-30% Mo with minimal chromium for hydrochloric acid.
Mechanical and Physical Properties
Typical annealed tensile strength is 690-790 MPa with elongation above 40%. The C-series resists pitting, crevice attack and chloride stress-corrosion cracking in both oxidising and reducing conditions.
Industry Applications
How coil and strip is used
Coil and strip are continuous cold-rolled flat product, bought to be worked rather than installed as they arrive. The common routes are stamping and deep drawing of gaskets, bellows, diaphragms and seals; forming of springs and spring washers; slitting to narrow strip for electrical contacts, battery tabs and current collectors; shim and vessel-lining stock; and as the feedstock from which welded tube and pipe are made. Thickness tolerance and temper matter more here than they do in any other form, because the material has to survive the press.
| Industry | Typical use |
|---|---|
| Chemical processing | Sulphuric, hydrochloric and phosphoric acid plant, reactors and scrubbers. |
| Pollution control | Flue-gas desulphurisation ducting, stack liners and scrubber internals. |
| Pharmaceutical | Reactor vessels and hygienic process lines. |
| Oil and gas | Sour-service hardware and high-chloride completion equipment. |
| Pulp and paper | Bleach-plant washers, digesters and chlorine dioxide service. |
Testing and Certification
Every consignment ships with an EN 10204 3.1 mill test certificate stating heat number, chemical analysis and mechanical properties. Depending on grade and specification we can supply positive material identification (PMI), ultrasonic and dye-penetrant testing, intergranular corrosion testing to ASTM A262 or G28, and third-party inspection release notes from Lloyd's Register, Bureau Veritas, SGS or TUV.
Aurico Alloys LLP operates an ISO 9001:2015 quality management system. Material for sour service can be supplied certified to NACE MR0175 / ISO 15156 where the grade permits.
Frequently Asked Questions
Request a Quotation
Send your grade, size, quantity and specification and we will respond with price and lead time, usually the same working day. Call +91 7977 88 6611 or email info@auricoalloys.com.
