Duplex and Super Duplex Stainless Steel Coil Supplier, Stockist and Exporter
Table of Contents

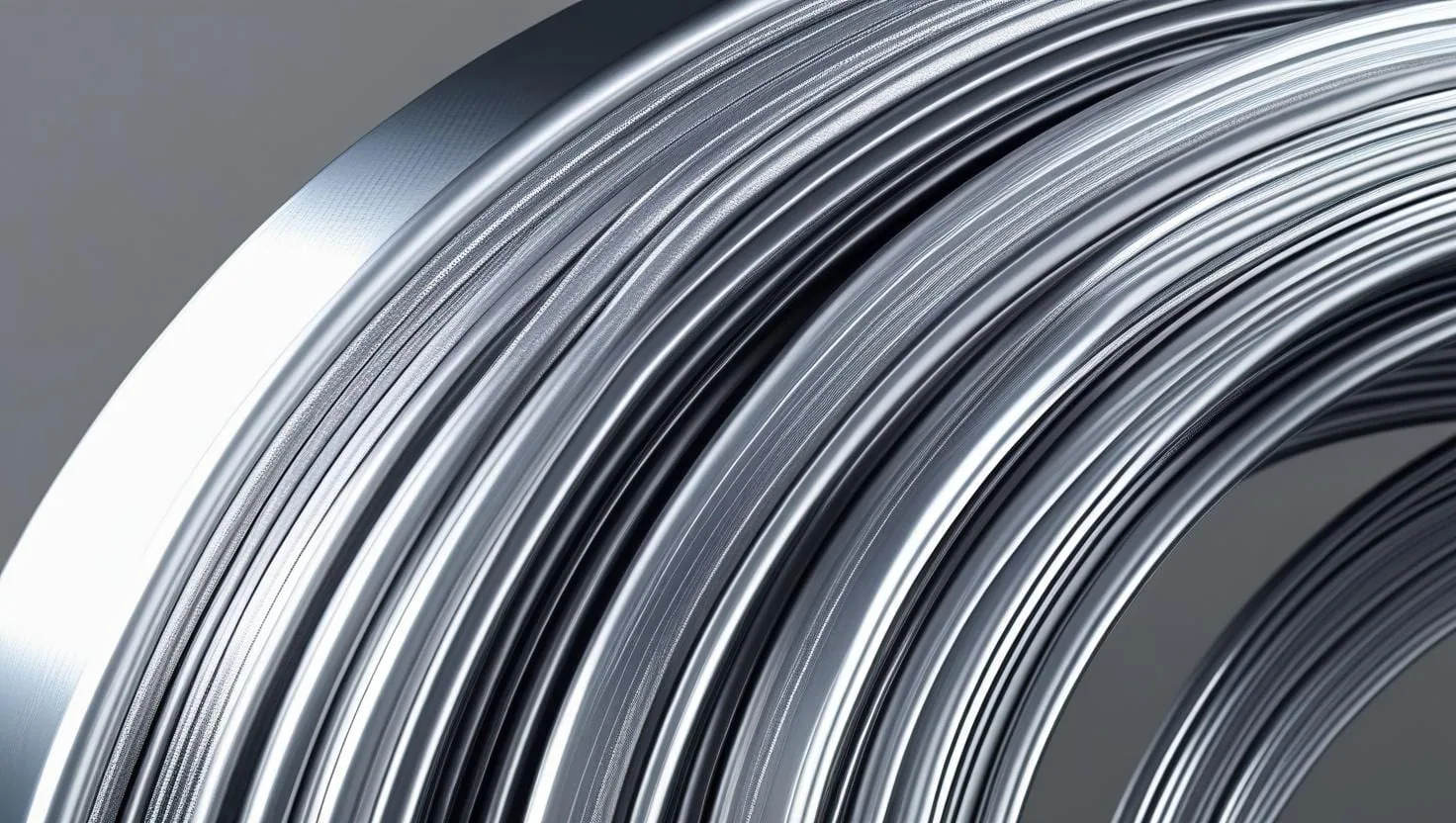

Aurico Alloys LLP supplies duplex steel coil from ready stock in Mumbai to customers across India and in more than 40 export markets. Coil is the most economical way to buy sheet-gauge material when parts are blanked, roll-formed or slit to strip, because it removes the cut-length premium and keeps the surface consistent along the whole run.
Duplex Steel covers dual-phase austenitic-ferritic stainless steels giving roughly twice the yield strength of 316L with far better chloride resistance. In-house slitting, cut-to-length, levelling and edge conditioning let us ship coil already sized for your press or roll former.
Sizes and Specifications
| Size range | Thickness 0.05 mm to 6.0 mm, width 3 mm to 1250 mm, supplied in slit coil, mill-edge coil or narrow strip. Coil weights and inside diameters are set to suit your decoiler. |
|---|---|
| Types and finishes | Available in annealed and pickled, bright annealed, cold rolled 2B, and No. 4 polished finishes, with edge condition slit, deburred or rolled to order. |
| Specifications | ASTM B906 / A240 / B265 as applicable to the grade, with ASME SB equivalents. |
| Certification | EN 10204 3.1 mill test certificate; 3.2 and third-party inspection on request |
| Origin | Indian and imported mills, fully traceable by heat number |
| Price | INR 500 – 850 per kg. Indicative USD 6 – 10 per kg; quoted against grade, form, size and quantity. |
Specifications by Grade – Plate, sheet and strip
A specification is written for a product form. The standards below are the ones that cover plate, sheet and strip; the plate, bar and tube specifications for these grades are different documents and are listed on their own pages.
| Grade | UNS | Plate, sheet and strip specification |
|---|---|---|
| 2205 | S32205 | ASTM A240 |
| 32750 | S32750 | ASTM A240 |
| 32760 | S32760 | ASTM A240 |
Grades and International Equivalents
| Grade | UNS | Werkstoff (W.Nr.) |
|---|---|---|
| Duplex 2205 | S31803 / S32205 | 1.4462 |
| Lean Duplex 2101 | S32101 | 1.4162 |
| Duplex 2304 | S32304 | 1.4362 |
| Super Duplex 2507 / F53 | S32750 | 1.4410 |
| Super Duplex F55 (Zeron 100) | S32760 | 1.4501 |
Chemical Composition
Duplex 2205 runs 22% Cr, 5.5% Ni and 3.1% Mo with 0.14-0.20% nitrogen. Super duplex grades raise chromium to 25% and molybdenum to 4% for a PREN above 40.
Mechanical and Physical Properties
Minimum yield strength is 450 MPa for 2205 and 550 MPa for 2507, roughly double that of 316L. The balanced microstructure resists chloride stress-corrosion cracking that defeats standard austenitic grades.
Industry Applications
How coil and strip is used
Coil and strip are continuous cold-rolled flat product, bought to be worked rather than installed as they arrive. The common routes are stamping and deep drawing of gaskets, bellows, diaphragms and seals; forming of springs and spring washers; slitting to narrow strip for electrical contacts, battery tabs and current collectors; shim and vessel-lining stock; and as the feedstock from which welded tube and pipe are made. Thickness tolerance and temper matter more here than they do in any other form, because the material has to survive the press.
| Industry | Typical use |
|---|---|
| Oil and gas | Subsea manifolds, flowlines, risers and process piping. |
| Desalination | High-pressure piping, evaporator bodies and brine handling. |
| Chemical processing | Pressure vessels, tanks and acid-service piping. |
| Pulp and paper | Digesters, bleaching equipment and liquor handling. |
| Marine | Cargo tanks, offshore structure and seawater systems. |
Testing and Certification
Every consignment ships with an EN 10204 3.1 mill test certificate stating heat number, chemical analysis and mechanical properties. Depending on grade and specification we can supply positive material identification (PMI), ultrasonic and dye-penetrant testing, intergranular corrosion testing to ASTM A262 or G28, and third-party inspection release notes from Lloyd's Register, Bureau Veritas, SGS or TUV.
Aurico Alloys LLP operates an ISO 9001:2015 quality management system. Material for sour service can be supplied certified to NACE MR0175 / ISO 15156 where the grade permits.
Frequently Asked Questions
Request a Quotation
Send your grade, size, quantity and specification and we will respond with price and lead time, usually the same working day. Call +91 7977 88 6611 or email info@auricoalloys.com.
