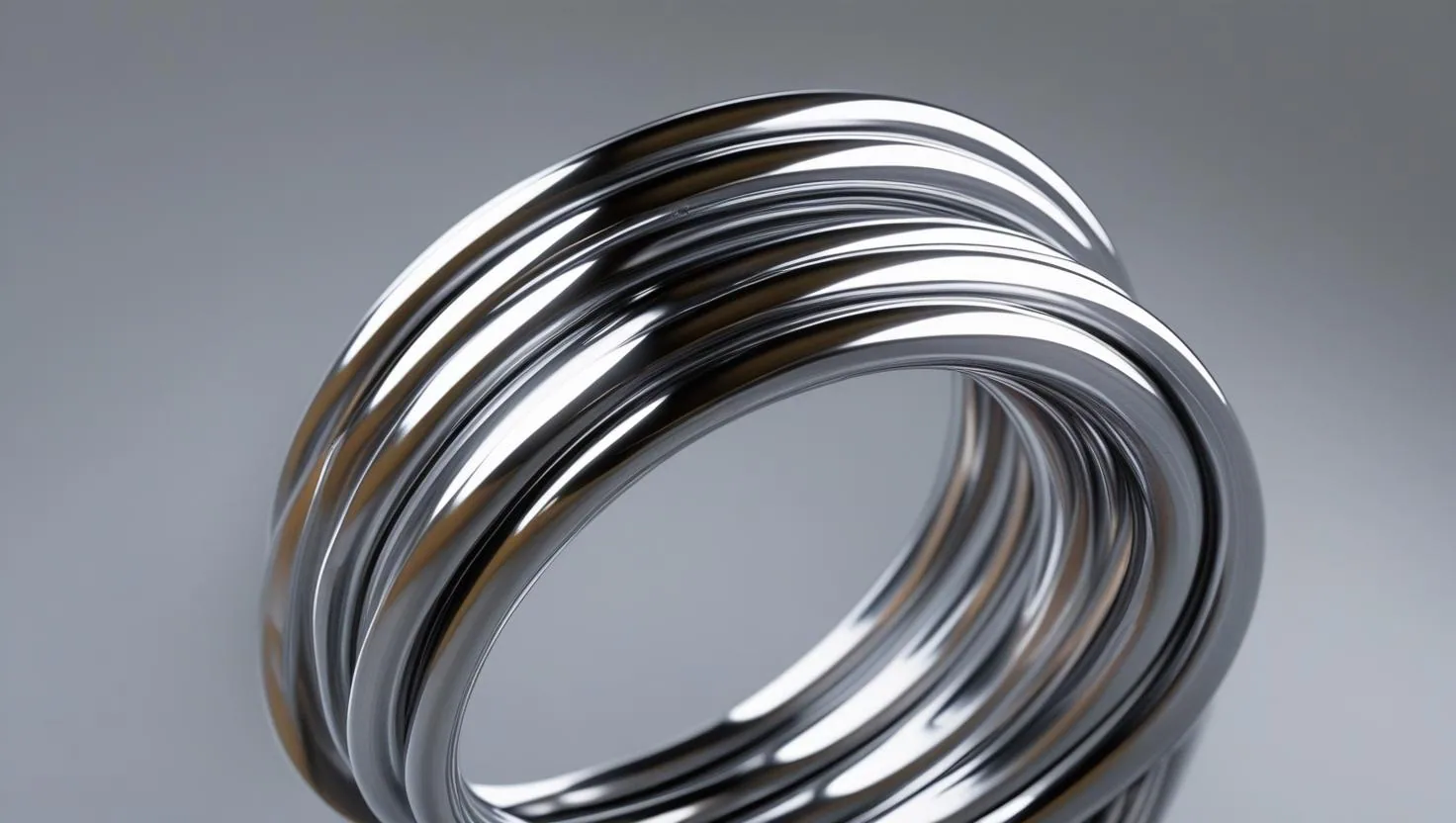

Nimonic Coil Supplier, Stockist and Exporter
Table of Contents
Aurico Alloys LLP supplies nimonic coil from ready stock in Mumbai to customers across India and in more than 40 export markets. Coil is the most economical way to buy sheet-gauge material when parts are blanked, roll-formed or slit to strip, because it removes the cut-length premium and keeps the surface consistent along the whole run.
Nimonic covers age-hardened nickel-chromium superalloys developed for gas-turbine hot sections. In-house slitting, cut-to-length, levelling and edge conditioning let us ship coil already sized for your press or roll former.
Sizes and Specifications
| Size range | Thickness 0.05 mm to 6.0 mm, width 3 mm to 1250 mm, supplied in slit coil, mill-edge coil or narrow strip. Coil weights and inside diameters are set to suit your decoiler. |
|---|---|
| Types and finishes | Available in annealed and pickled, bright annealed, cold rolled 2B, and No. 4 polished finishes, with edge condition slit, deburred or rolled to order. |
| Specifications | ASTM B906 / A240 / B265 as applicable to the grade, with ASME SB equivalents. |
| Certification | EN 10204 3.1 mill test certificate; 3.2 and third-party inspection on request |
| Origin | Indian and imported mills, fully traceable by heat number |
Specifications by Grade – Plate, sheet and strip
A specification is written for a product form. The standards below are the ones that cover plate, sheet and strip; the plate, bar and tube specifications for these grades are different documents and are listed on their own pages.
| Grade | UNS | Plate, sheet and strip specification |
|---|---|---|
| 75 | N06075 | BS HR 203 / DIN 17750 / ISO 6208 |
| 80A | N07080 | BS HR 201 / AECMA PrEn 2191 / DIN EN 10302 |
| 81 | — | Mill specification |
| 86 | — | Mill specification |
| 90 | N07090 | BS HR 202 / AECMA PrEN 2298 |
| 105 | — | BS HR 3 |
| 263 | N07263 | AMS 5872 / BS HR 206 / DIN 17750 |
Grades and International Equivalents
| Grade | UNS | Werkstoff (W.Nr.) |
|---|---|---|
| Nimonic 75 | N06075 | 2.4951 |
| Nimonic 80A | N07080 | 2.4952 |
| Nimonic 90 | N07090 | 2.4632 |
| Nimonic 105 | — | 2.4634 |
| Nimonic 263 | N07263 | 2.4650 |
| Nimonic 901 | N09901 | 2.4662 |
Chemical Composition
The family is built on 18-21% chromium in a nickel matrix, strengthened by titanium and aluminium that precipitate gamma-prime on ageing. Nimonic 90 adds 15-21% cobalt; Nimonic 263 uses 5.6-6.1% molybdenum.
Mechanical and Physical Properties
Aged tensile strength typically falls between 900 and 1200 MPa, with creep-rupture capability sustained to 900°C and good resistance to oxidation and sulphidation.
Industry Applications
How coil and strip is used
Coil and strip are continuous cold-rolled flat product, bought to be worked rather than installed as they arrive. The common routes are stamping and deep drawing of gaskets, bellows, diaphragms and seals; forming of springs and spring washers; slitting to narrow strip for electrical contacts, battery tabs and current collectors; shim and vessel-lining stock; and as the feedstock from which welded tube and pipe are made. Thickness tolerance and temper matter more here than they do in any other form, because the material has to survive the press.
| Industry | Typical use |
|---|---|
| Aerospace | Turbine blades, discs, rings and combustion hardware. |
| Power generation | Industrial gas-turbine components and hot-gas-path parts. |
| Automotive | Exhaust valves for high-performance and heavy-duty engines. |
| Heat treatment | Furnace fixtures and high-temperature springs. |
| Oil and gas | Turbine hardware and high-temperature fasteners. |
Testing and Certification
Every consignment ships with an EN 10204 3.1 mill test certificate stating heat number, chemical analysis and mechanical properties. Depending on grade and specification we can supply positive material identification (PMI), ultrasonic and dye-penetrant testing, intergranular corrosion testing to ASTM A262 or G28, and third-party inspection release notes from Lloyd's Register, Bureau Veritas, SGS or TUV.
Aurico Alloys LLP operates an ISO 9001:2015 quality management system. Material for sour service can be supplied certified to NACE MR0175 / ISO 15156 where the grade permits.
Frequently Asked Questions
Request a Quotation
Send your grade, size, quantity and specification and we will respond with price and lead time, usually the same working day. Call +91 7977 88 6611 or email info@auricoalloys.com.
