When a major industrial furnace manufacturer faced repeated heating element failures due to oxidation and thermal cycling, the solution came with Nichrome Round Bars. These nickel-chromium alloys, renowned for their exceptional high-temperature resistance and electrical properties, transformed their heating systems delivering consistent performance, extended service life, and reduced maintenance costs. Today, engineers and procurement teams across chemical, oil & gas, marine, pharma, and power generation industries trust Nichrome for their most demanding heating and high-temperature applications.
Table of Contents:
Nichrome, particularly the 80/20 composition (UNS N06023), consists of approximately 80% nickel and 20% chromium, creating an alloy with outstanding oxidation resistance, high electrical resistivity, and excellent mechanical strength at elevated temperatures. This unique combination makes Nichrome ideal for heating elements, furnace components, and high-temperature applications where ordinary steels would fail. The alloy maintains structural integrity up to 1100°C while providing uniform heat distribution and consistent electrical resistance.
As a trusted Nichrome Round Bars supplier, manufacturer, and stockist, Aurico Alloys LLP provides affordable, best-quality, authentic materials for chemical, oil & gas, marine, pharma, and power generation industries, along with hardware and industrial supply stores. Available in diameters from 1mm to 200mm with various finishes including bright, polished, and hot-rolled, these bars are supplied with complete mill test certificates and international standard compliance.
Compared to standard heating alloys, Nichrome's superior oxidation resistance, thermal stability, and fabricability make it the preferred choice for critical heating applications. Its resistance to scaling and corrosion even at red-hot temperatures ensures reliable performance in industrial furnaces, aerospace heating systems, and chemical processing equipment where failure is not an option.

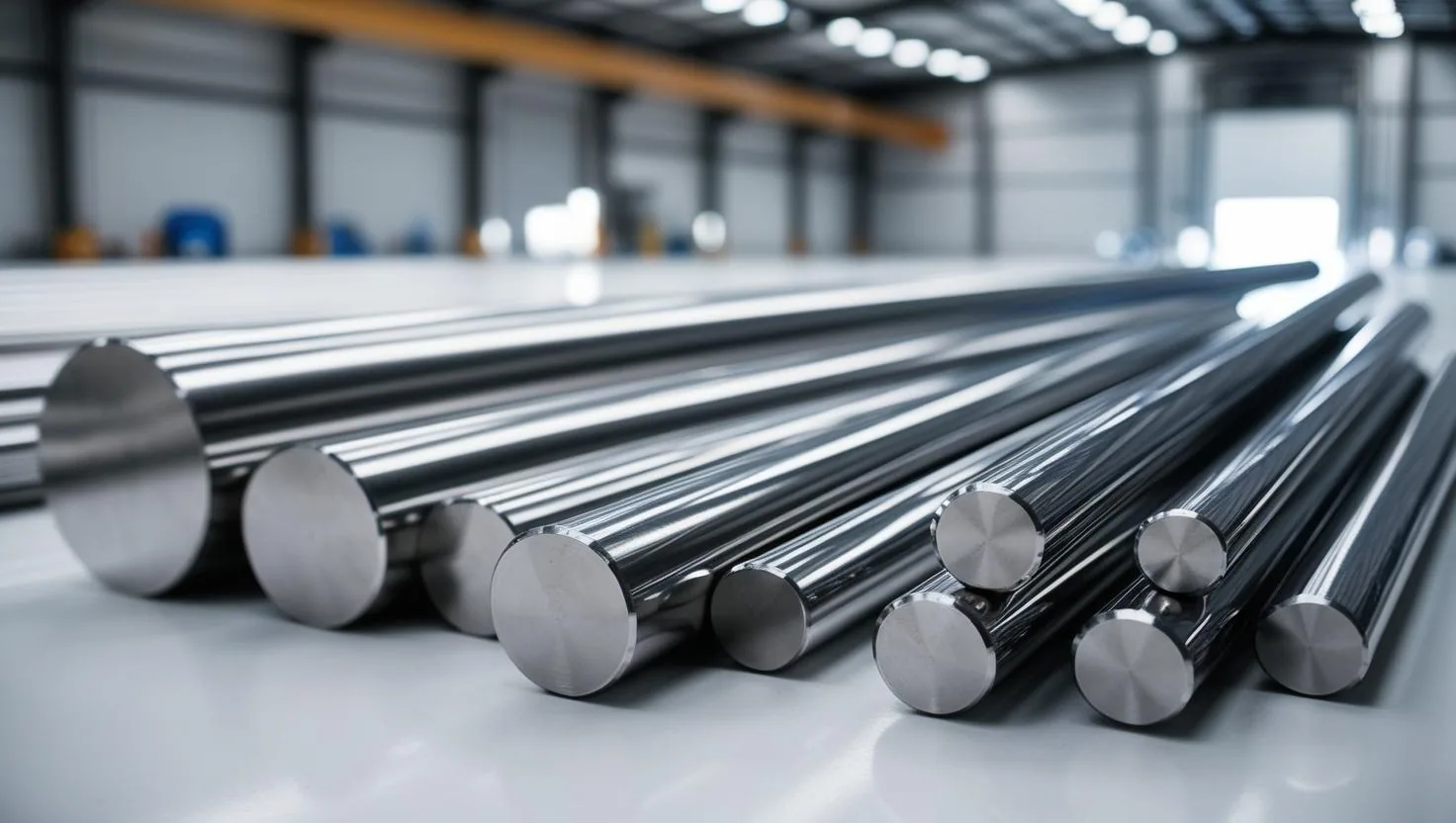

High-quality Nichrome Round Bars ready for industrial use.
Specification Overview
| Supplier & Manufacturer | Aurico Alloys LLP |
|---|---|
| Grade | Nichrome 80/20, 70/30 and 60/15 |
| Standards | One rod and bar specification per grade – listed in Equivalent Grades & Standards below. Inspection certificates to EN 10204. |
| Diameter Range | 1mm – 200mm |
| Length | 100mm – 6000mm |
| Finish | Bright, polished, hot-rolled, annealed, ground |
| Delivery | Direct stock, mill test certificates, international compliance |
Equivalent Grades & Standards
Nichrome 80/20
| Property | Value |
|---|---|
| UNS number | N06023 |
| Werkstoff / EN number | 2.4869 |
| EN designation | NiCr 80 20 |
| Density | 8.3 g/cm3 |
| Melting range | 1400 °C |
| Electrical resistivity (20 °C - per DIN 17470) | 112 µΩ·cm |
| Electrical resistivity (20 °C - per ASTM B 344) | 108 µΩ·cm |
| Thermal conductivity | 14.6 W/m·K |
| Specific heat (20 °C) | 420 J/kg·K |
| Coefficient of expansion (200 °C) | 14.0 µm/m·°C |
| Modulus of elasticity | 200 kN/mm² |
| Maximum operating temperature in air (as heating element) | 1200 °C |
| Maximum operating temperature in air (as resistance alloy) | 600 °C |
| Rod and bar specification | ASTM B344 |
Identifiers and physical constants for Nichrome 80/20. A dash means no such designation is published for this grade.
Nichrome 70/30
| Property | Value |
|---|---|
| UNS number | N06003 |
| Werkstoff / EN number | 2.4658 |
| EN designation | NiCr 70 30 |
| Density | 8.1 g/cm3 |
| Melting range | 1400 °C |
| Electrical resistivity (20 °C - per DIN 17470) | 119 µΩ·cm |
| Electrical resistivity (20 °C - per ASTM B 344) | 116 µΩ·cm |
| Thermal conductivity | 13.8 W/m·K |
| Specific heat (20 °C) | 420 J/kg·K |
| Coefficient of expansion (200 °C) | 13.5 µm/m·°C |
| Modulus of elasticity | 200 kN/mm² |
| Maximum operating temperature in air | 1250 °C (sheet prints this as approximate) |
| Rod and bar specification | ASTM B344 |
Identifiers and physical constants for Nichrome 70/30. A dash means no such designation is published for this grade.
Nichrome 60/15
| Property | Value |
|---|---|
| UNS number | N06024 |
| Werkstoff / EN number | 2.4867 |
| EN designation | NiCr 6015 |
| Density | 8.2 g/cm3 |
| Melting range | 1390 °C |
| Electrical resistivity (20 °C) | 113 µΩ·cm |
| Thermal conductivity | 13.4 W/m·K |
| Specific heat | 460 J/kg·K |
| Coefficient of expansion (20-100 °C) | 13.5 µm/m·°C |
| Modulus of elasticity | 200 kN/mm² |
| Maximum working temperature (as heating element) | 1200 °C (sheet prints this as approximate) |
| Maximum working temperature (as resistance material) | 600 °C (sheet prints this as approximate) |
| Rod and bar specification | ASTM B344 |
Identifiers and physical constants for Nichrome 60/15. A dash means no such designation is published for this grade.
Stock & Product Availability
Nichrome Round Bars are stocked in comprehensive sizes and grades for rapid global supply to heating element manufacturers, furnace builders, and industrial equipment suppliers with complete certification.
Chemical Composition
Nichrome 80/20
| Element | Min (%) | Max (%) |
|---|---|---|
| Iron (Fe) | — | 1 |
| Chromium (Cr) | 19 | 21 |
| Nickel (Ni) | — | Balance |
| Carbon (C) | — | 0.15 |
| Manganese (Mn) | — | 1.0 |
| Silicon (Si) | 0.75 | 1.75 |
| Others | — | 0.01 |
Composition limits for Nichrome 80/20. These are specification limits for the grade, not measured values for a lot; the mill test certificate supplied with your order states the actual analysis.
Nichrome 70/30
| Element | Min (%) | Max (%) |
|---|---|---|
| Iron (Fe) | — | 1 |
| Chromium (Cr) | 29 | 31 |
| Nickel (Ni) | — | Balance |
| Carbon (C) | — | 0.07 |
| Manganese (Mn) | — | 1.0 |
| Silicon (Si) | 1 | 1.5 |
| Copper (Cu) | — | 0.5 |
| Aluminium (Al) | — | 0.2 |
| Others | 0.01 | 0.04 |
Composition limits for Nichrome 70/30. These are specification limits for the grade, not measured values for a lot; the mill test certificate supplied with your order states the actual analysis.
Nichrome 60/15
| Element | Min (%) | Max (%) |
|---|---|---|
| Nickel (Ni) | 57.0 | — |
| Chromium (Cr) | 14.0 | 17.0 |
| Iron (Fe) | — | Balance |
| Carbon (C) | — | 0.10 |
| Manganese (Mn) | — | 1.0 |
| Silicon (Si) | 1.0 | 1.75 |
| Aluminium (Al) | — | 0.3 |
| Other | — | 0.04 |
Composition limits for Nichrome 60/15. These are specification limits for the grade, not measured values for a lot; the mill test certificate supplied with your order states the actual analysis.
Mechanical & Physical Properties
Density, electrical resistivity, thermal conductivity, specific heat, expansion, modulus and maximum operating temperature are published for each of the three grades in the Equivalent Grades & Standards tables above, read off the VDM Metals sheet named beneath each one.
Room-temperature strength, elongation and hardness of a nichrome bar depend on the diameter and the temper it is drawn to, so they are quoted against your size rather than published as one figure for the grade. The mill test certificate supplied with your order states the results for the material you receive.
Applications & Benefits
- Industrial furnaces and kilns for heat treatment and annealing processes
- Heating elements for electric stoves, toasters, and household appliances
- Aerospace and automotive heating systems, de-icing equipment
- Chemical processing equipment requiring high-temperature resistance
- Power generation heating coils and resistance applications
- Medical device heating elements and laboratory equipment
FAQ & Industry Insights
Global Export Destinations
We ship worldwide from Mumbai. See every destination we export to on our export markets page.
Domestic Supply Network Across India
We deliver across India from our Mumbai stockyard. See every city we supply on our supply locations page.
Conclusion
Nichrome Round Bars from Aurico Alloys LLP deliver proven high-temperature performance, exceptional oxidation resistance, and certified quality for heating elements across chemical, oil & gas, marine, pharma, and power generation industries. Are your critical heating applications protected with the industry's most reliable Nichrome alloys?
