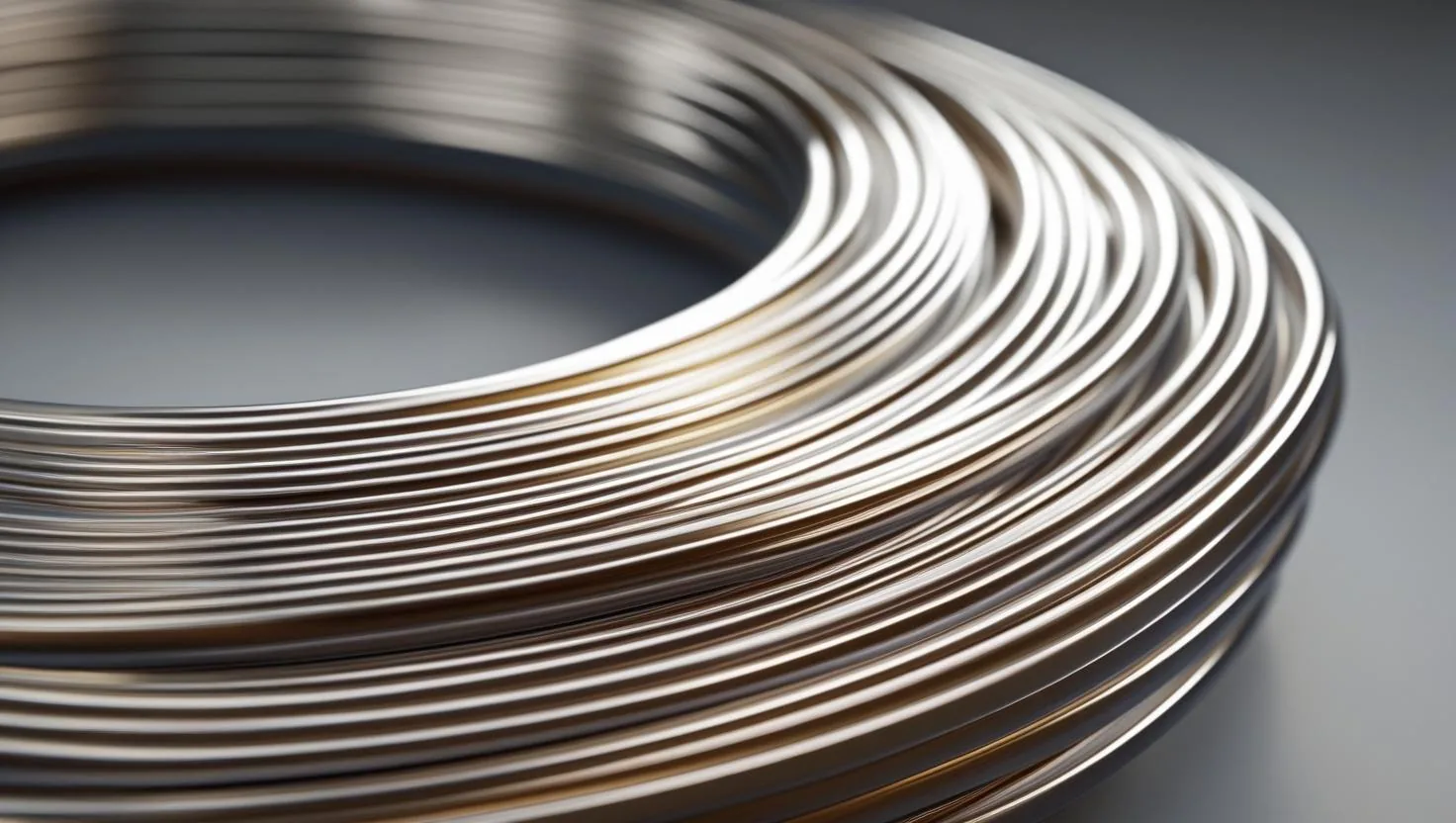

Inconel 693 Coil Supplier, Stockist and Exporter
Table of Contents
Aurico Alloys LLP supplies Inconel 693 coil, sheet and slit strip (UNS N06693) to ASTM B168 and B906 from Mumbai, to customers across India and in more than 40 export markets.
Flat 693 is bought for the parts inside a synthesis-gas unit that are made from sheet rather than tube: baffle plates, shrouds and liners, which Special Metals records as fabricated from the alloy. It is also one of the two typical product forms – strip and tube – for high-temperature fuel cell designs that produce synthesis gas, where the same metal-dusting risk applies.
Sizes and Specifications
| Grade | Inconel 693 |
|---|---|
| UNS number | N06693 |
| Werkstoff (W.Nr.) | — |
| Specifications | ASTM B168 (plate, sheet and strip); ASTM B906 (general requirements for flat-rolled products) |
| Size range | Thickness 0.05 mm to 6.0 mm, width 3 mm to 1250 mm, supplied in slit coil, mill-edge coil or narrow strip. Coil weights and inside diameters are set to suit your decoiler. |
| Condition and finish | Available in annealed and pickled, bright annealed, cold rolled 2B, and No. 4 polished finishes, with edge condition slit, deburred or rolled to order. |
| Certification | EN 10204 3.1 mill test certificate; 3.2 and third-party inspection on request |
Equivalent Grades & Standards
| Property | Value |
|---|---|
| UNS number | N06693 |
| Density | 7.77 g/cm3 |
| Melting range | 1317-1367 °C |
| Electrical resistivity | 1.168 µΩ·m |
| Plate, sheet and strip specification | ASTM B168 / B906 |
Identifiers and physical constants for Inconel 693. A dash means no such designation is published for this grade.
Chemical Composition
| Element | Min (%) | Max (%) |
|---|---|---|
| Nickel (Ni) | — | Balance (determined arithmetically by difference) |
| Chromium (Cr) | 27.0 | 31.0 |
| Iron (Fe) | 2.5 | 6.0 |
| Aluminium (Al) | 2.5 | 4.0 |
| Niobium (Nb) | 0.5 | 2.5 |
| Manganese (Mn) | — | 1.0 |
| Titanium (Ti) | — | 1.0 |
| Copper (Cu) | — | 0.5 |
| Silicon (Si) | — | 0.5 |
| Carbon (C) | — | 0.15 |
| Sulfur (S) | — | 0.01 |
Composition limits for Inconel 693. These are specification limits for the grade, not measured values for a lot; the mill test certificate supplied with your order states the actual analysis.
Mechanical and Physical Properties
Sheet and strip are supplied annealed for forming. The value of 693 in flat form is its chromium and aluminium scale, which resists metal dusting and carburisation on parts that would otherwise be eaten from the surface.
Industry Applications
Why Inconel 693 coil
A baffle or a liner in synthesis gas fails the same way a tube does – locally, by metal dusting – and replacing it in the same alloy repeats the failure. 693 sheet stops the mechanism rather than delaying it. Coil makes sense for fuel cell and heat-exchanger components produced in volume, where consistent gauge along the run matters; for one-off baffles, cut sheet is the practical choice.
| Industry | Typical use |
|---|---|
| Petrochemical | Baffle plates, shrouds and liners in synthesis-gas equipment. |
| Energy | Strip for high-temperature fuel cell components in synthesis-gas service. |
| Chemical processing | Formed parts in carburising process gas. |
| Heat treatment | Sheet-metal parts in carbon-rich furnace atmospheres. |
Testing and Certification
Coil is supplied with an EN 10204 3.1 mill test certificate stating heat number, chemical analysis, mechanical properties and temper. Thickness and width are checked against the order, and positive material identification and third-party inspection are available under our ISO 9001:2015 system.
Frequently Asked Questions
Request a Quotation
Send your size, quantity and specification and we will come back with price and lead time, usually the same working day. Call +91 7977 88 6611 or email info@auricoalloys.com.
