Incoloy 825 Wire Supplier, Stockist and Exporter

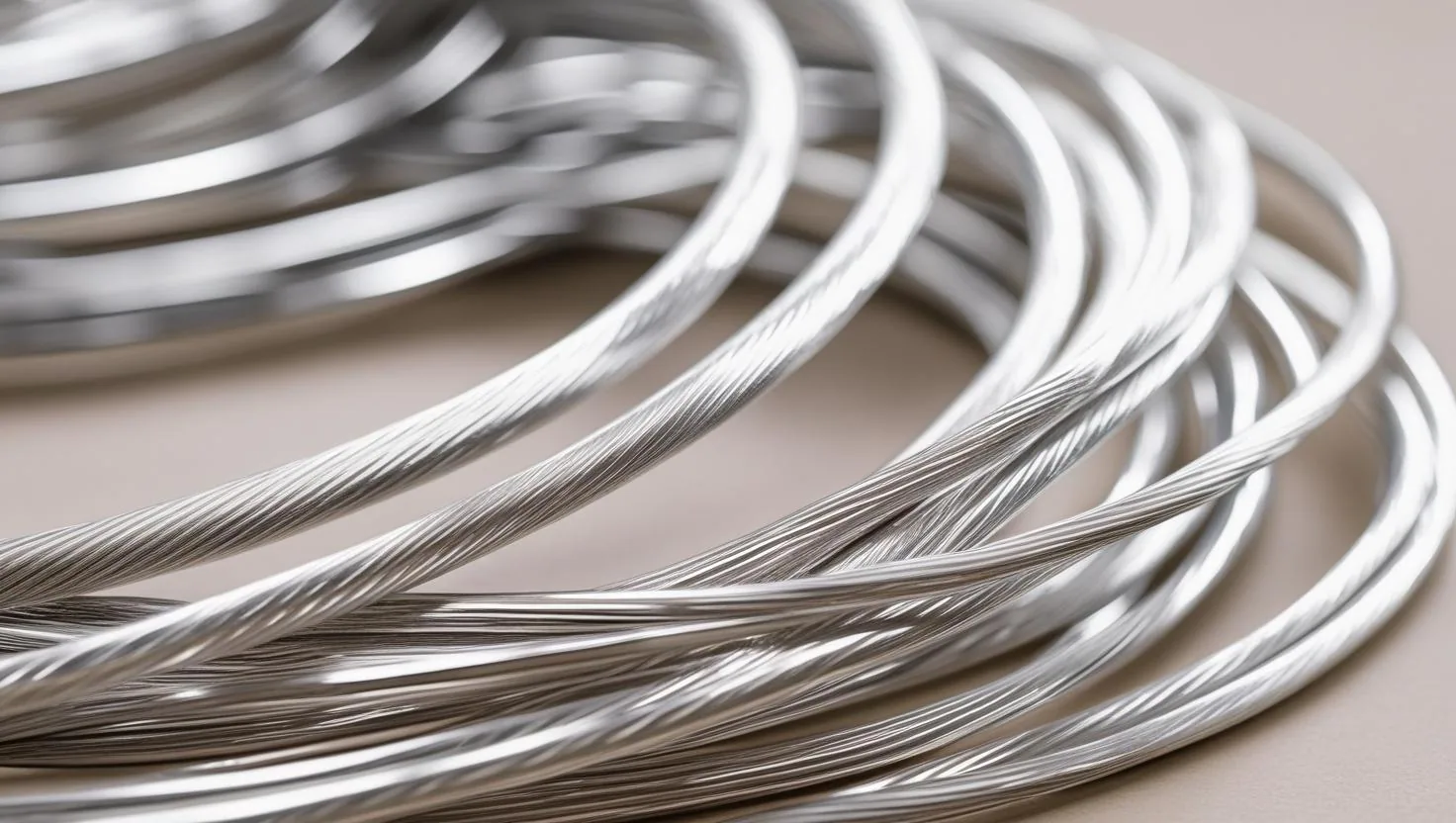

Aurico Alloys LLP supplies incoloy 825 wire (N08825, Werkstoff 2.4858) from ready stock in Mumbai, to customers across India and in more than 40 export markets. Wire is bought on diameter and temper, and those two decide whether a coil is any use for the job long before anything on the certificate does.
Incoloy 825 is stabilised with titanium and carries copper and molybdenum, which is why it holds up in sulphuric and phosphoric acid service where a plain austenitic stainless will not. As wire it is used where the filler has to match that resistance across a weld.
Sizes and Specifications
| Grade | Incoloy 825 |
|---|---|
| UNS number | N08825 |
| Werkstoff (W.Nr.) | 2.4858 |
| Specifications | ASTM B425 (rod, bar and wire), B424 (plate, sheet and strip), B423 (seamless pipe and tube) |
| Diameter range | 0.5 mm to 5.5 mm |
| Tempers | Annealed, Half Hard, Spring Temper, Hard |
| Certification | EN 10204 3.1 mill test certificate with every despatch |
| Price | INR 1,600 – 2,000 per kg. Indicative USD 19 – 24 per kg; quoted against grade, form, size and quantity. |
Equivalent Grades & Standards
| Property | Value |
|---|---|
| UNS number | N08825 |
| Werkstoff / EN number | 2.4858 |
| EN designation | NiCr21Mo |
| Density | 8.14 g/cm3 |
| Melting range | 1370-1400 °C |
| Specific heat | 440 J/kg·°C |
| Curie temperature | < -196 °C |
| Magnetic permeability (at 200 oersted / 15.9 kA/m) | 1.005 |
| Wire specification | ASTM B425 |
Identifiers and physical constants for Incoloy 825. A dash means no such designation is published for this grade.
Chemical Composition
| Element | Min (%) | Max (%) |
|---|---|---|
| Nickel (Ni) | 38.0 | 46.0 |
| Iron (Fe) | 22.0 | — |
| Chromium (Cr) | 19.5 | 23.5 |
| Molybdenum (Mo) | 2.5 | 3.5 |
| Copper (Cu) | 1.5 | 3.0 |
| Titanium (Ti) | 0.6 | 1.2 |
| Carbon (C) | — | 0.05 |
| Manganese (Mn) | — | 1.0 |
| Sulfur (S) | — | 0.03 |
| Silicon (Si) | — | 0.5 |
| Aluminium (Al) | — | 0.2 |
Composition limits for Incoloy 825. These are specification limits for the grade, not measured values for a lot; the mill test certificate supplied with your order states the actual analysis.
Limits are those of the governing ASTM specification for Incoloy 825. The mill certificate supplied with each despatch carries the actual heat analysis.
Tempers
Incoloy 825 wire is supplied in four tempers. Mechanical properties follow from the temper rather than the grade, so state the temper with the diameter when you enquire.
| Temper |
|---|
| Annealed |
| Half Hard |
| Spring Temper |
| Hard |
Industry Applications
- MIG and TIG welding, as filler wire matching the parent alloy
- Fasteners — bolts, studs, rivets and cold-headed parts
- Springs and formed components, in the harder tempers
- Mesh, wire cloth and general fabrication
Testing and Certification
Every despatch carries an EN 10204 3.1 mill test certificate from the producing mill, with the heat analysis and the mechanical results for the temper supplied. Third-party inspection and 3.2 certification are arranged on request. See how we verify material before it ships.
Request a Quotation
Send the diameter, the temper and the quantity, and we will quote with lead time and the certification you need. Call +91 7977 88 6611 or email info@auricoalloys.com.
