On a coastal refinery where sour gas, wet chlorine and hot seawater meet in the same pipe rack, a set of conventional stainless steel gaskets began to pit and leak after just eight months, forcing an emergency shutdown and millions in unplanned losses. The engineering team replaced those failing components with precision-cut Hastelloy® Foil linings and gaskets in UNS N10276 and UNS N06022, and service life immediately jumped by several years with no signs of pitting, crevice attack or weld decay in aggressive mixed-acid conditions . For procurement heads, maintenance engineers, fabricators, OEMs and industrial hardware stores in chemical, oil & gas, marine, pharma and power generation, that kind of reliability is the difference between constant firefighting and predictable uptime.
Table of Contents:
Hastelloy C276 foil (UNS N10276) is a nickel‑chromium‑molybdenum‑tungsten alloy renowned as a “universal” corrosion‑resistant material, with tested tensile strength around 790 MPa, yield strength ~355 MPa and elongation ~40% at room temperature, plus excellent resistance to reducing acids, wet chlorine, hydrochloric and sulfuric acids, brine and hot seawater . Hastelloy C22 foil (UNS N06022) raises the bar for oxidizing and chloride‑rich environments, delivering highest‑in‑class pitting and crevice corrosion resistance for pharmaceutical processing equipment, multi‑purpose reactors and clean‑in‑place systems where 316L, 904L or even Alloy 20 cannot cope with modern CIP chemistries . Compared with Inconel 625 foil, which is excellent but more optimized for high‑temperature strength than universal wet‑corrosion service, Hastelloy foils consistently offer broader resistance in strongly reducing acid systems and complex mixed media, cutting lifecycle cost even if the initial price per kg is slightly higher .
Aerospace‑grade Hastelloy X foil (UNS N06002) combines oxidation resistance, fabricability and high‑temperature strength, remaining ductile even after 16,000 hours at 650–870°C in gas turbine combustion liners and honeycomb seals, making it a go‑to choice for engine OEMs and MRO facilities worldwide . Hastelloy C2000 foil (UNS N06200) adds a deliberate copper content to the Ni‑Cr‑Mo base, boosting resistance in sulfuric, hydrofluoric and dilute hydrochloric acids, which is invaluable for thin‑gauge sensor shields and electronics exposed to aggressive chemical vapors in process plants . For extreme reducing acid duties, Hastelloy B3 foil (UNS N10675) offers extremely high resistance to pure hydrochloric, hydrobromic and sulfuric acids with improved thermal stability over older B2 versions, making it suitable for vacuum furnace linings and pickling equipment where temperature excursions are unavoidable .
Aurico Alloys LLP positions Hastelloy® Foil as an affordable yet high‑assurance solution, supplying authentic coils and cut‑to‑size strips with full EN 10204 3.1 MTCs, PMI testing and global export packing for chemical, oil & gas, marine, pharma, power producers and industrial supply houses seeking a trusted supplier, manufacturer and stockist in India. As Hastelloy foil exporters in Mumbai, the team supports applications from ASTM B575 Hastelloy C276 foil for specialized flue gas desulfurization systems to custom 0.01–2.0 mm gauges for subsea components and sour‑gas refineries needing guaranteed corrosion performance and traceability .

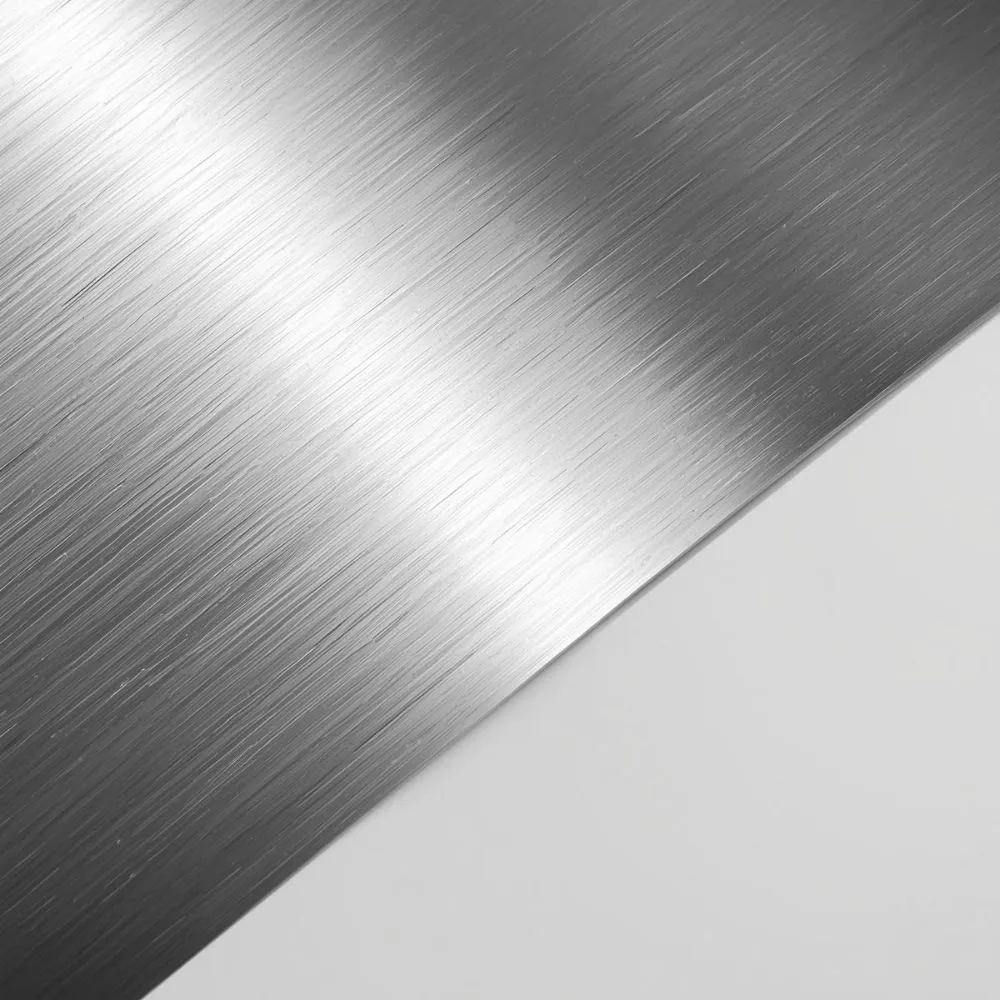

High-quality Hastelloy Foil ready for industrial use.
Specification Overview
| Supplier & Manufacturer | Aurico Alloys LLP – Hastelloy® Foil supplier, stockist, exporter in India to abroad |
|---|---|
| Primary Grades | Hastelloy C276 (UNS N10276), C22 (UNS N06022), X (UNS N06002), C2000 (UNS N06200), B3 (UNS N10675) |
| Applicable Standards | ASTM B575 (C276, C22, C2000, B3), AMS & SB specs for strip/foil, ISO 6208, EN 10204 3.1 |
| Thickness Range | Approx. 0.01 mm – 2.0 mm (thin gauge foil and strip) |
| Width & Coil Form | Custom slit coils and sheeted foil for gaskets, linings, shields |
| Finish | Bright annealed, cold rolled, mill finish, deburred edges |
| Certification | EN 10204 3.1 MTC, PMI, NACE/ISO 15156 project support where applicable |
| Price | INR 4,000 – 15,000 per kg. Indicative USD 47 – 176 per kg; quoted against grade, form, size and quantity. |
Equivalent Grades & Standards
Hastelloy B-2
| Property | Value |
|---|---|
| UNS number | N10665 |
| Werkstoff / EN number | 2.4617 |
| EN designation | NiMo28 |
| Density | 9.22 g/cm3 |
| Plate, sheet and strip specification | ASTM B333 |
Identifiers and physical constants for Hastelloy B-2. A dash means no such designation is published for this grade.
Hastelloy C-4
| Property | Value |
|---|---|
| UNS number | N06455 |
| Werkstoff / EN number | 2.4610 |
| EN designation | NiMo16Cr16Ti |
| Density | 8.64 g/cm3 |
| Electrical resistivity | 1.25 µΩ·m |
| Thermal conductivity | 10.1 W/m·°C |
| Coefficient of expansion (24-100 °C) | 10.9 µm/m·°C |
| Specific heat (0 °C) | 406 J/kg·°C |
| Dynamic modulus of elasticity | 212 GPa |
| Plate, sheet and strip specification | ASTM B575 |
Identifiers and physical constants for Hastelloy C-4. A dash means no such designation is published for this grade.
Hastelloy C-22
| Property | Value |
|---|---|
| UNS number | N06022 |
| Werkstoff / EN number | 2.4602 |
| EN designation | NiCr21Mo14W |
| Density | 8.69 g/cm3 |
| Melting range | 1357-1399 °C |
| Electrical resistivity | 1.14 µΩ·m |
| Thermal conductivity (50 °C) | 10.1 W/m·°C |
| Thermal diffusivity | 0.027 cm²/s |
| Coefficient of expansion (24-100 °C) | 12.4 µm/m·°C |
| Specific heat (50 °C) | 414 J/kg·°C |
| Dynamic modulus of elasticity | 206 GPa |
| Plate, sheet and strip specification | ASTM B575 |
Identifiers and physical constants for Hastelloy C-22. A dash means no such designation is published for this grade.
Hastelloy C-276
| Property | Value |
|---|---|
| UNS number | N10276 |
| Werkstoff / EN number | 2.4819 |
| EN designation | NiMo16Cr15W |
| Density | 8.89 g/cm3 |
| Melting range | 1323-1371 °C |
| Electrical resistivity | 1.23 µΩ·m |
| Thermal conductivity (50 °C) | 10.5 W/m·°C |
| Coefficient of expansion (24-100 °C) | 11.2 µm/m·°C |
| Magnetic permeability (at 200 oersted / 15.9 kA/m) | 1.0002 |
| Specific heat | 427 J/kg·°C |
| Dynamic modulus of elasticity | 205 GPa |
| Poisson's ratio | 0.31 |
| Plate, sheet and strip specification | ASTM B575 |
Identifiers and physical constants for Hastelloy C-276. A dash means no such designation is published for this grade.
Hastelloy C-2000
| Property | Value |
|---|---|
| UNS number | N06200 |
| Werkstoff / EN number | 2.4675 |
| EN designation | NiCr23Mo16Cu |
| Density | 8.50 g/cm3 |
| Melting range | 1328-1358 °C |
| Electrical resistivity | 1.28 µΩ·m |
| Thermal conductivity | 9.1 W/m·°C |
| Coefficient of expansion (25-100 °C) | 12.4 µm/m·°C |
| Thermal diffusivity | 0.025 cm²/s |
| Specific heat | 428 J/kg·°C |
| Dynamic modulus of elasticity | 207 GPa |
| Plate, sheet and strip specification | ASTM B575 |
Identifiers and physical constants for Hastelloy C-2000. A dash means no such designation is published for this grade.
Hastelloy G-30
| Property | Value |
|---|---|
| UNS number | N06030 |
| Werkstoff / EN number | 2.4603 |
| EN designation | NiCr30FeMo |
| Density | 8.22 g/cm3 |
| Electrical resistivity | 1.16 µΩ·m |
| Thermal conductivity | 10 W/m·°C |
| Coefficient of expansion (30-100 °C) | 12.8 µm/m·°C |
| Dynamic modulus of elasticity | 202 GPa |
| Plate, sheet and strip specification | ASTM B582 |
Identifiers and physical constants for Hastelloy G-30. A dash means no such designation is published for this grade.
Hastelloy N
| Property | Value |
|---|---|
| UNS number | N10003 |
| Density | 8.86 g/cm3 |
| Melting range | 1300-1400 °C |
| Thermal conductivity (200 °C) | 13.1 W/m·°C |
| Coefficient of expansion (20-200 °C) | 12.3 µm/m·°C |
| Electrical resistivity (20 °C) | 120.5 µΩ·cm |
| Dynamic modulus of elasticity (20 °C) | 219 GPa |
| Plate, sheet and strip specification | ASTM B434 / AMS 5607 |
Identifiers and physical constants for Hastelloy N. A dash means no such designation is published for this grade.
Hastelloy X
| Property | Value |
|---|---|
| UNS number | N06002 |
| Werkstoff / EN number | 2.4665 |
| EN designation | NiCr22Fe18Mo |
| Density | 8.22 g/cm3 |
| Melting range | 1260-1355 °C |
| Electrical resistivity (24 °C) | 114.83 µΩ·cm |
| Thermal conductivity (25 °C) | 9.2 W/m·°C |
| Specific heat | 486 J/kg·°C |
| Coefficient of expansion (26-100 °C) | 13.9 µm/m·°C |
| Dynamic modulus of elasticity | 205 GPa |
| Poisson's ratio | 0.320 |
| Magnetic permeability (at 200 oersted / 15.9 kA/m) | 1.002 |
| Plate, sheet and strip specification | ASTM B435 / AMS 5536 |
Identifiers and physical constants for Hastelloy X. A dash means no such designation is published for this grade.
Stock & Product Availability
Typical enquiries include Hastelloy C276 foil supplier in Mumbai for wet chlorine and sulfuric acid environments, UNS N10276 Hastelloy foil stockist for high‑pressure chemical reactor liners in India, and Hastelloy C22 foil for pharmaceutical processing equipment where chloride‑rich CIP and SIP cycles quickly destroy standard steels . Custom cut‑to‑size Hastelloy foil from 0.01–2 mm thickness is available for industrial heat exchanger gaskets, localized corrosion protection wraps in refineries and subsea components in offshore platforms, with Hastelloy foil price per kg in Mumbai optimized for project budgets through efficient coil utilization .
Chemical Composition (Key Grades)
Hastelloy B-2
| Element | Min (%) | Max (%) |
|---|---|---|
| Nickel (Ni) | — | Balance |
| Molybdenum (Mo) | 26.0 | 30.0 |
| Iron (Fe) | — | 2.0 |
| Chromium (Cr) | — | 1.0 |
| Cobalt (Co) | — | 1.00 |
| Manganese (Mn) | — | 1.0 |
| Carbon (C) | — | 0.02 |
| Silicon (Si) | — | 0.10 |
| Phosphorus (P) | — | 0.04 |
| Sulfur (S) | — | 0.03 |
Composition limits for Hastelloy B-2. These are specification limits for the grade, not measured values for a lot; the mill test certificate supplied with your order states the actual analysis.
Hastelloy C-4
| Element | Min (%) | Max (%) |
|---|---|---|
| Nickel (Ni) | — | Balance |
| Chromium (Cr) | 14.0 | 18.0 |
| Molybdenum (Mo) | 14.0 | 17.0 |
| Iron (Fe) | — | 3.0 |
| Cobalt (Co) | — | 2.0 |
| Manganese (Mn) | — | 1.0 |
| Titanium (Ti) | — | 0.7 |
| Carbon (C) | — | 0.015 |
| Silicon (Si) | — | 0.08 |
| Phosphorus (P) | — | 0.04 |
| Sulfur (S) | — | 0.03 |
Composition limits for Hastelloy C-4. These are specification limits for the grade, not measured values for a lot; the mill test certificate supplied with your order states the actual analysis.
Hastelloy C-22
| Element | Min (%) | Max (%) |
|---|---|---|
| Nickel (Ni) | — | Balance |
| Chromium (Cr) | 20.0 | 22.5 |
| Molybdenum (Mo) | 12.5 | 14.5 |
| Iron (Fe) | 2.0 | 6.0 |
| Tungsten (W) | 2.5 | 3.5 |
| Cobalt (Co) | — | 2.5 |
| Manganese (Mn) | — | 0.50 |
| Vanadium (V) | — | 0.35 |
| Carbon (C) | — | 0.015 |
| Silicon (Si) | — | 0.08 |
| Phosphorus (P) | — | 0.02 |
| Sulfur (S) | — | 0.02 |
Composition limits for Hastelloy C-22. These are specification limits for the grade, not measured values for a lot; the mill test certificate supplied with your order states the actual analysis.
Hastelloy C-276
| Element | Min (%) | Max (%) |
|---|---|---|
| Nickel (Ni) | — | Balance |
| Chromium (Cr) | 14.5 | 16.5 |
| Molybdenum (Mo) | 15.0 | 17.0 |
| Iron (Fe) | 4.0 | 7.0 |
| Tungsten (W) | 3.0 | 4.5 |
| Cobalt (Co) | — | 2.5 |
| Manganese (Mn) | — | 1.0 |
| Vanadium (V) | — | 0.35 |
| Carbon (C) | — | 0.010 |
| Silicon (Si) | — | 0.08 |
| Phosphorus (P) | — | 0.04 |
| Sulfur (S) | — | 0.03 |
Composition limits for Hastelloy C-276. These are specification limits for the grade, not measured values for a lot; the mill test certificate supplied with your order states the actual analysis.
Hastelloy C-2000
| Element | Min (%) | Max (%) |
|---|---|---|
| Nickel (Ni) | — | Balance |
| Chromium (Cr) | 22.0 | 24.0 |
| Molybdenum (Mo) | 15.0 | 17.0 |
| Copper (Cu) | 1.3 | 1.9 |
| Iron (Fe) | — | 3.0 |
| Cobalt (Co) | — | 2.0 |
| Manganese (Mn) | — | 0.50 |
| Aluminium (Al) | — | 0.50 |
| Carbon (C) | — | 0.010 |
| Silicon (Si) | — | 0.08 |
| Phosphorus (P) | — | 0.025 |
| Sulfur (S) | — | 0.010 |
Composition limits for Hastelloy C-2000. These are specification limits for the grade, not measured values for a lot; the mill test certificate supplied with your order states the actual analysis.
Hastelloy G-30
| Element | Min (%) | Max (%) |
|---|---|---|
| Nickel (Ni) | — | Balance |
| Chromium (Cr) | 28.0 | 31.5 |
| Iron (Fe) | 13.0 | 17.0 |
| Molybdenum (Mo) | 4.0 | 6.0 |
| Tungsten (W) | 1.5 | 4.0 |
| Copper (Cu) | 1.0 | 2.4 |
| Niobium (Nb) | 0.30 | 1.50 |
| Cobalt (Co) | — | 5.0 |
| Manganese (Mn) | — | 1.5 |
| Carbon (C) | — | 0.03 |
| Silicon (Si) | — | 0.8 |
| Phosphorus (P) | — | 0.04 |
| Sulfur (S) | — | 0.02 |
Composition limits for Hastelloy G-30. These are specification limits for the grade, not measured values for a lot; the mill test certificate supplied with your order states the actual analysis.
Hastelloy N
| Element | Min (%) | Max (%) |
|---|---|---|
| Nickel (Ni) | — | Balance |
| Molybdenum (Mo) | 15 | 18 |
| Chromium (Cr) | 6 | 8 |
| Iron (Fe) | — | 5 |
| Tungsten (W) | — | 0.5 |
| Vanadium (V) | — | 0.5 |
| Aluminium (Al) | — | 0.5 |
| Copper (Cu) | — | 0.35 |
| Cobalt (Co) | — | 0.2 |
| Carbon (C) | — | 0.08 |
| Manganese (Mn) | — | 1 |
| Silicon (Si) | — | 1 |
Composition limits for Hastelloy N. These are specification limits for the grade, not measured values for a lot; the mill test certificate supplied with your order states the actual analysis.
Hastelloy X
| Element | Min (%) | Max (%) |
|---|---|---|
| Nickel (Ni) | — | Balance |
| Chromium (Cr) | 20.5 | 23.0 |
| Iron (Fe) | 17.0 | 20.0 |
| Molybdenum (Mo) | 8.0 | 10.0 |
| Cobalt (Co) | 0.5 | 2.5 |
| Tungsten (W) | 0.2 | 1.0 |
| Aluminium (Al) | — | 0.50 |
| Titanium (Ti) | — | 0.15 |
| Copper (Cu) | — | 0.50 |
| Carbon (C) | 0.05 | 0.15 |
| Boron (B) | — | 0.010 |
| Manganese (Mn) | — | 1.0 |
| Silicon (Si) | — | 1.0 |
| Phosphorus (P) | — | 0.040 |
| Sulfur (S) | — | 0.030 |
Composition limits for Hastelloy X. These are specification limits for the grade, not measured values for a lot; the mill test certificate supplied with your order states the actual analysis.
Mechanical & Physical Properties
| Alloy | Density | Tensile Strength (MPa) | Yield 0.2% (MPa) | Elongation (%) | Notes |
|---|---|---|---|---|---|
| Hastelloy C276 | 8.89 g/cm³ | ≈790 | ≈355 | ~40 | Excellent resistance to reducing acids, FGD, hot seawater |
| Hastelloy C22 | ≈8.69 g/cm³ | High strength austenitic Ni‑Cr‑Mo alloy | Good yield with excellent toughness | Good ductility from RT to elevated temperatures | Outstanding pitting and crevice corrosion resistance for pharma/chemical |
| Hastelloy X | ≈8.22 g/cm³ | Maintains strength after 16,000 h at 650–870°C | High yield at elevated temperatures | Good ductility after long exposures | Oxidation resistant gas turbine alloy |
| Hastelloy B3 | ≈9.2 g/cm³ | ≈715–735 at 650°C | ≈290–315 at 650°C | ≈56–65 at 650°C | Excellent temperature stability in reducing acids |
Applications, Keywords & Benefits
- ASTM B575 Hastelloy C276 foil for specialized flue gas desulfurization systems, stack liners and absorber internals where chlorides, SO₂ and high temperature combine to attack standard steels .
- UNS N10276 Hastelloy foil stockist for high‑pressure chemical reactor liners in India, offering universal corrosion resistance in mixed acid and chlorinated media .
- Corrosion resistant Hastelloy C22 foil for pharmaceutical processing equipment, CIP/SIP systems and multi‑purpose reactors needing ultra‑low contamination risk .
- Hastelloy foil price per kg in Mumbai optimized for industrial heat exchanger gaskets, expansion bellows and weld‑overlay backers, lowering maintenance cost through longer intervals .
- Aerospace grade Hastelloy X foil for gas turbine combustion liners and honeycomb seals; Hastelloy foil exporters in Mumbai serving global aircraft engine MRO facilities .
- Thin gauge Hastelloy C2000 foil for advanced electronics and sensor shielding in harsh chemical or offshore atmospheres .
- Hastelloy B3 foil supplier for high‑temperature vacuum furnace applications in India where pure hydrochloric and sulfuric atmospheres are present .
- Hastelloy C276 foil for sour gas service in offshore oil and gas exploration, and marine grade Hastelloy foil stockist in Mumbai for seawater‑cooled heat exchangers and subsea components .
- Leading Hastelloy alloy foil dealers in Mumbai for localized corrosion protection in refineries and acid plants; Hastelloy vs Inconel 625 foil comparison consistently favors Hastelloy in severe reducing and mixed‑acid environments for long‑term reliability in India .
FAQ, Search Trends & Buying Tips
Global Export Destinations
We ship worldwide from Mumbai. See every destination we export to on our export markets page.
Domestic Supply Network
We deliver across India from our Mumbai stockyard. See every city we supply on our supply locations page.
Conclusion
By combining advanced nickel‑chromium‑molybdenum chemistries, robust ASTM B575 and AMS‑grade specifications, and proven performance in the harshest chemical, oil & gas, marine, pharma and power environments, Hastelloy® Foil from Aurico Alloys LLP offers procurement heads, engineers, fabricators, OEMs and hardware distributors a practical way to extend asset life, cut unplanned shutdowns and standardize on a globally trusted material – so are your most critical gaskets, linings and high‑temperature components ready to be upgraded to next‑generation Hastelloy foil?
