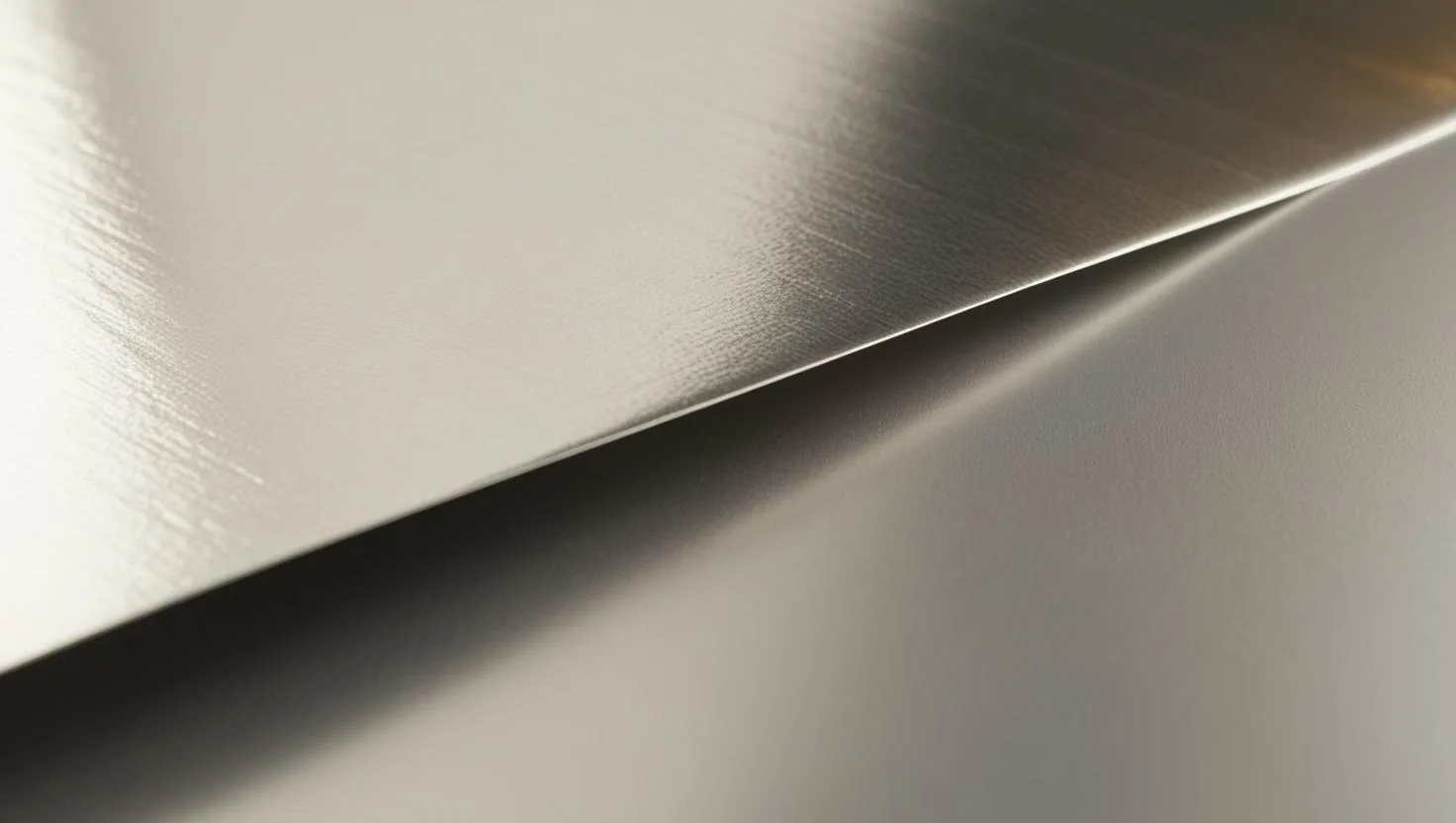

Nickel 200 / 201 Foil Supplier, Stockist and Exporter

Name: Nickel 200 / 201 Foil
Brand: Aurico Alloys LLP
SKU: N02200
Availability: InStock

Aurico Alloys LLP supplies nickel 200 and nickel 201 foil (UNS N02200 and N02201, ASTM B162) from ready stock in Mumbai.

Foil is where gauge consistency and surface cleanliness dominate, because at these thicknesses a rolling defect becomes a through-hole. Commercially pure nickel is chosen here for its combination of corrosion resistance, thermal and electrical conductivity, and reliable weld behaviour.

Sizes and Specifications

Nickel 200 / 201 foil - supply range
Grades	Nickel 200 (N02200), Nickel 201 (N02201), N6
Specification	ASTM B162 / ASME SB162; tolerances to ASTM B910
Thickness	0.01 mm to 0.50 mm
Width	3 mm to 600 mm, slit to tolerance
Temper	Annealed (soft), half hard and hard
Finish	Bright annealed or matte, slit or deburred edge
Certification	EN 10204 3.1 mill test certificate
Price	INR 2,500 – 5,000 per kg. Indicative USD 29 – 59 per kg; quoted against grade, form, size and quantity.

Chemical Composition

Nickel 99.0% minimum, with copper to 0.25%, iron to 0.40%, manganese to 0.35% and silicon to 0.35%. Carbon is the distinguishing element: 0.15% maximum in Nickel 200 and 0.02% maximum in Nickel 201.

Mechanical and Physical Properties

Annealed tensile strength is around 380-450 MPa with elongation of 40% or more. Density is 8.89 g/cm3, melting range 1435-1446 degrees C, with high thermal and electrical conductivity and a Curie temperature of about 360 degrees C. Nickel 201 keeps its ductility in continuous service above 315 degrees C where Nickel 200 would embrittle.

Industry Applications

Industry	Typical use
Battery manufacturing	Cell tabs, interconnects and busbar stock for lithium packs.
Chemical processing	Caustic soda evaporators, vessel linings and handling equipment.
Electronics	Lead frames, shielding, anodes and precision stampings.
Aerospace	Gaskets, seals and corrosion-resistant shim stock.
Food processing	Equipment in contact with food-grade caustic and organic acids.

Frequently Asked Questions

Both are commercially pure nickel. Nickel 201 is the low-carbon version, capped at 0.02% carbon against 0.15% for Nickel 200. That lower carbon prevents embrittlement from graphite precipitation above about 315 degrees C, so Nickel 201 is the grade for sustained elevated-temperature and caustic service.

Foil from 0.01 mm to 0.50 mm thick and 3 mm to 600 mm wide, in coil or cut lengths, with slit or deburred edges and interleaving on request.

ASTM B162 for nickel plate, sheet and strip, with dimensional tolerances to ASTM B910. UNS N02200 for Nickel 200 and N02201 for Nickel 201.

Battery tabs and cell interconnects, caustic soda handling, electronic lead frames, magnetostrictive transducers, chemical processing linings and food-contact equipment.

Yes - an EN 10204 3.1 mill test certificate with every despatch, stating heat number, chemical analysis and mechanical properties.
