Strategic Stockist of MTS-Tested Pure Titanium Sheets (Grade 1-4). We bridge the gap between mill lead times and your production schedule with 100% traceable inventory.
Eliminating Procurement Risk: MTS & MTR Verification
In critical applications like airframe brackets or orthopedic implants, material failure is not an option. Most suppliers provide generic certificates; we provide certainty.
Upon inquiry, we share comprehensive Material Test Certificates (MTC) and MTS (Material Test System) reports that verify:
- Ultimate Tensile Strength (UTS): Ensuring the 550 MPa+ threshold for Grade 4.
- Elongation & Ductility: Essential for complex forming and machining.
- Chemical Purity: Precise Oxygen and Iron control for UNS R50700 compliance.

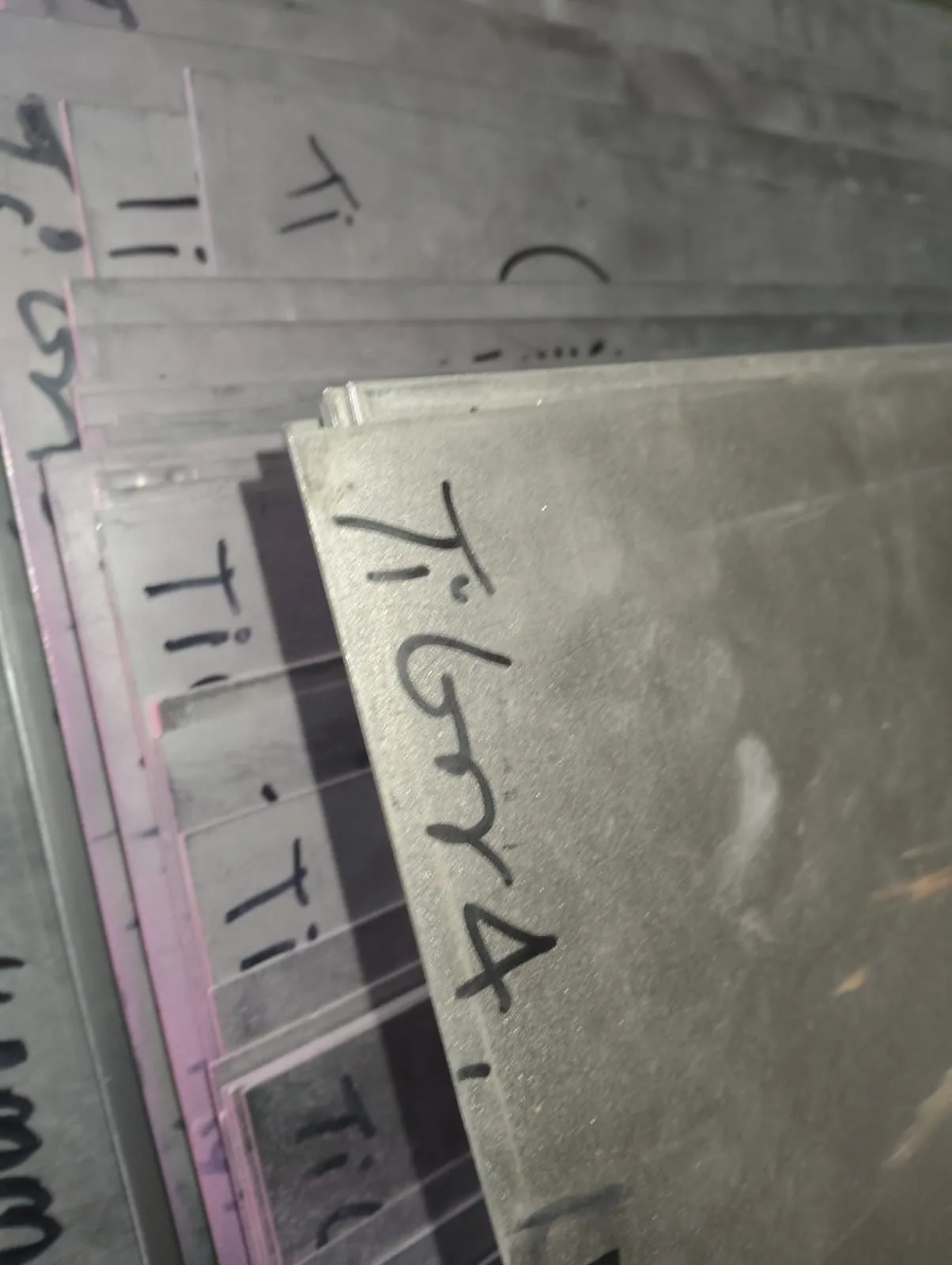

High-quality Titanium grade 4 Sheets ready for industrial use.
Specification Overview
| Thickness Range | 0.2 mm – 4.75 mm |
|---|---|
| Price | INR 2,000 – 7,500 per kg. Indicative USD 24 – 88 per kg; quoted against grade, form, size and quantity. |
Equivalent Grades & Standards
| Property | Value |
|---|---|
| UNS number | R50700 |
| Density | 4.51 g/cm3 |
| Melting range | 1650 °C |
| Modulus of elasticity | 15 × 10⁶ psi |
| Beta transus | 1635-1735 °F (ATI range for grades 1-4 7 11 12 and 16-18 (± 25 °F)) |
| Thermal conductivity | 13-10 Btu/ft·h·°F (ATI range for grades 1-4 7 11 12 and 16-18) |
| Coefficient of expansion (32-600 °F) | 5.1 µin/in·°F |
Identifiers and physical constants for Titanium Grade 4. A dash means no such designation is published for this grade.
Primary Applications for 0.5mm - 1.2mm Titanium Sheets
Aerospace Structures
Used in hydraulic systems, firewalls, and airframe skins where high strength and weight reduction are critical.
Medical Orthopedics
Biocompatible Grade 4 is preferred for bone plates, screws, and dental implants due to its high fatigue strength.
Get Certified Grade 4 Data Today
Submit your inquiry to receive our latest Inventory List and a sample MTS Test Report for your specific thickness requirements.
| Element | Min (%) | Max (%) |
|---|---|---|
| Carbon (C) | — | 0.08 |
| Oxygen (O) | — | 0.40 |
| Nitrogen (N) | — | 0.05 |
| Hydrogen (H) | — | 0.015 (product analysis - ingot analysis for all other elements) |
| Iron (Fe) | — | 0.50 |
| Other elements (each) | — | 0.1 |
| Other elements (total) | — | 0.4 |
| Titanium (Ti) | — | Balance (determined by difference) |
Composition limits for Titanium Grade 4. These are specification limits for the grade, not measured values for a lot; the mill test certificate supplied with your order states the actual analysis.
Express Shipping to Bangalore, Mumbai, Hyderabad, and Pune.
Mechanical Properties
| Property | Typical Range |
|---|---|
| Tensile Strength (MPa) | 550 – 690 |
| Yield Strength (0.2%, MPa) | 480 – 620 |
| Elongation (%) | 15 – 20 |
| Modulus of Elasticity (GPa) | 105 – 120 |
| Max Service Temperature (°C) | Up to 400°C continuous use |
Global Export Destinations
We ship worldwide from Mumbai. See every destination we export to on our export markets page.
Domestic Supply Network
We deliver across India from our Mumbai stockyard. See every city we supply on our supply locations page.
Conclusion
Aurico Alloys LLP’s Titanium Grade 4 Sheets combine premium corrosion resistance, superior mechanical strength, and certified quality to empower challenging chemical, oil & gas, marine, pharma, and power generation applications. Trust Aurico’s affordable, certified, and authentic sheets to provide lasting durability and operational confidence. Are you ready to enhance your industrial assets with Titanium Grade 4 Sheets from a globally respected supplier?
