Imagine the hum of a factory floor, the precision of assembly lines working in sync, and the trust of thousands of end-users relying on your battery packs every day. At the core of that trust is the quality of every connection, especially the busbars that link the power cells. Copper busbars have long been the backbone of reliable electrical distribution, and when crafted to perfection, they transform battery packs into powerhouses of efficiency and durability. Aurico Alloys LLP offers superior Copper Busbars designed for battery pack manufacturers and hardware suppliers who demand nothing but the best for their clients.
Table of Contents
What are Copper Busbars?
Copper busbars are robust, flat strips or bars of copper used primarily for conducting electrical current within battery packs and electrical panels. They are essential in connecting battery cells, transformers, switchgear, and other power equipment, offering highly efficient pathways for current with minimal voltage drops. Their wide surface area combined with copper’s innate conductivity provides optimal performance in power management systems.
Aurico Alloys LLP’s Copper Busbars are precision-engineered to meet the specific needs of modern battery pack design, optimizing layout space and enhancing energy transfer. Their design allows for efficient heat dissipation, critical in high-power applications like electric vehicles and industrial energy storage.
Copper stands as the undisputed leader in electrical conductivity, second only to silver, yet far more cost-effective and readily available. Its remarkable thermal and mechanical properties allow copper busbars to distribute electrical power efficiently, reduce energy loss, and withstand harsh operating environments common in e-mobility, renewable energy storage, and robotics. The specialty of Aurico’s Copper Busbars lies in their precision manufacturing, quality assured by ASTM and UNS standards, ensuring your battery assemblies maintain safety and longevity.
As battery systems scale in size and complexity, the demand for larger, high-current busbars grows. Copper busbars designed by Aurico not only meet but exceed required dimensions and tolerances, delivering lower resistive losses which translate into cooler, longer-lasting battery packs. Additionally, with surface treatments and proprietary finishes, these busbars resist corrosion effectively, reducing maintenance costs over the product lifecycle.
Aurico Alloys LLP’s commitment goes beyond supply; they provide detailed specifications, custom size adaptation, and documentation compliant with global regulatory regimes, including RoHS and REACH. This empowers OEMs, pack assemblers, and hardware distributors worldwide to reduce assembly errors, increase efficiency, and assure end-user satisfaction through robust, tested products.

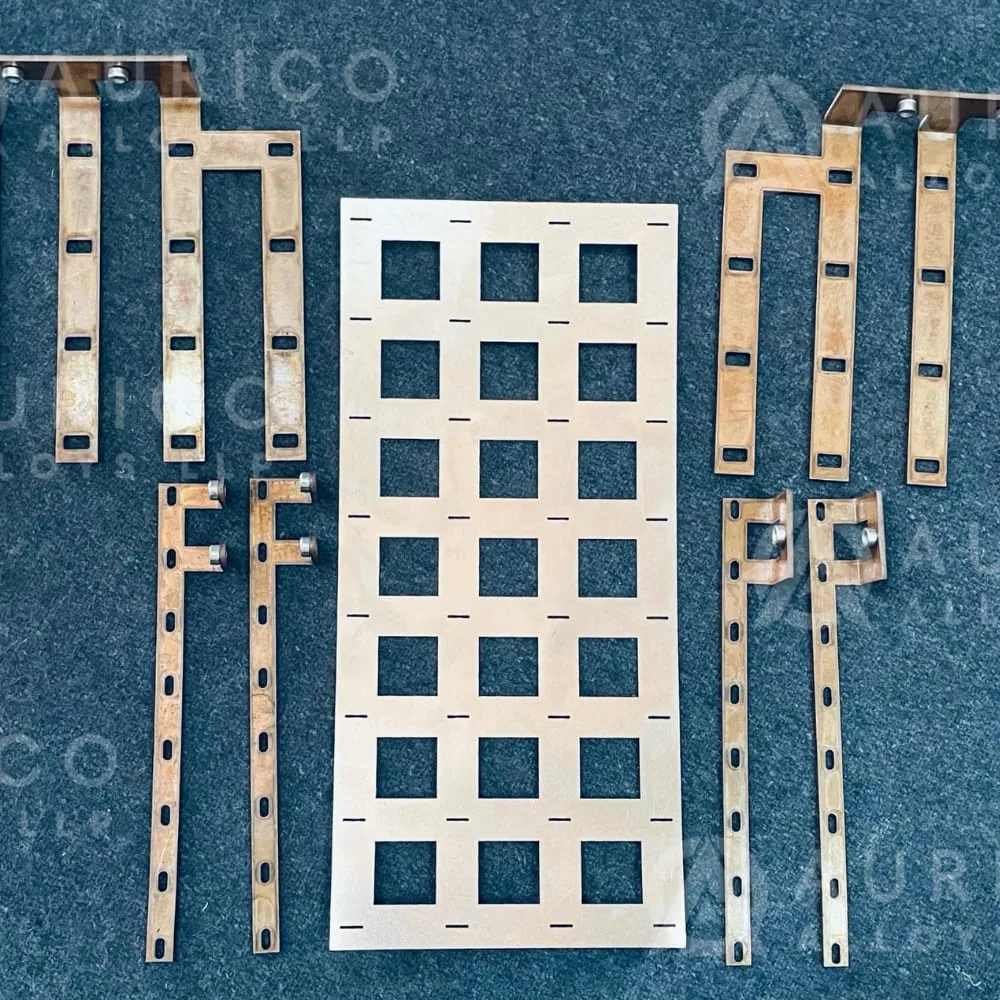

High-quality Copper Busbars ready for industrial use.
Copper Busbar Specifications
| Manufacturer | Aurico Alloys LLP |
|---|---|
| Material | Electrolytic Tough Pitch (ETP) Copper, Oxygen-Free Copper (OFC) |
| Dimensions | Customizable Thickness (0.5mm to 10mm), Width (5mm to 300mm), Length as required |
| Surface Finishing | Bright Finish, Tin or Nickel Coated for Corrosion Resistance |
| Packaging | Coils, Straight Bars, Cut Lengths with Protective Packing |
| Customizations | Bending, Drilling, Surface Treatments as per Customer Specification |
Copper Busbar Grades and Standards
| Standard | Material Grade | UNS Number | ASTM Specification |
|---|---|---|---|
| Oxygen-Free Copper | OFC | C10100 | ASTM B170 |
| Electrolytic Tough Pitch Copper | ETP | C11000 | ASTM B187 |
Chemical Composition
Copper busbars from Aurico meet stringent purity levels, generally with a copper content exceeding 99.9%. Oxygen content varies by grade but is tightly controlled to ensure optimal conductivity and mechanical properties.
Mechanical & Electrical Properties
| Property | Typical Range | Standard |
|---|---|---|
| Electrical Conductivity | 97-100% IACS | ASTM B187 |
| Electrical Resistivity | ~1.7 µΩ-cm | ASTM B187 |
| Tensile Strength | 210-310 MPa | ASTM B170 / B187 |
| Yield Strength | 70-270 MPa | ASTM B170 / B187 |
| Elongation | 10-40 % | ASTM B170 / B187 |
Applications of Copper Busbars
- Electric Vehicle Battery Packs: Reliable high-current connectors with excellent thermal management
- Renewable Energy Systems: Solar and wind energy storage with corrosion-resistant busbars
- Industrial Power Distribution: Efficient power management in substations and switchgear
- Consumer Electronics: Compact, high-performance battery pack interconnects
- Electrical Grounding Systems: High conductivity and safety assurance
Frequently Asked Questions
Global Export Destinations for Copper Busbars
We ship worldwide from Mumbai. See every destination we export to on our export markets page.
Domestic Supply Network for Copper Busbars Across India
We deliver across India from our Mumbai stockyard. See every city we supply on our supply locations page.
Conclusion
Copper busbars from Aurico Alloys LLP provide the benchmark for reliable, efficient, and durable connections in modern battery packs. When building mission-critical energy solutions, can you afford to compromise on your busbar choice?
