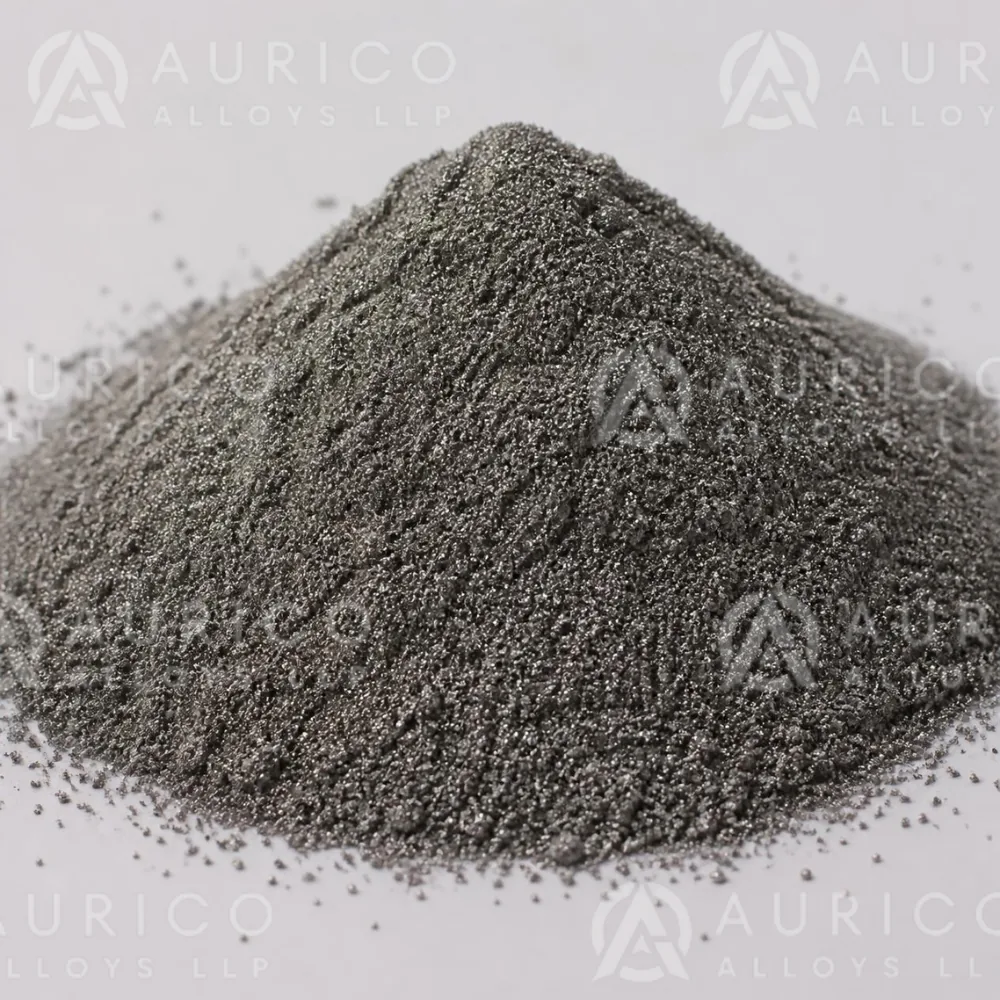

Tool Steel Powder for Additive Manufacturing

Aurico Alloys LLP supplies 2 tool steel powder grades for additive manufacturing: H13 (T20813) and Maraging 18Ni300 (1.2709 / X3NiCoMoTi 18-9-5).

Hot-work and maraging tool steel powders, printed almost entirely for tooling - conformal-cooled mould inserts, die-casting dies and repair cladding.

Every grade and cut on this page is supplied: held in stock, or arranged with the manufacturer where a cut is not on the shelf. Tell us the alloy, the size fraction and the quantity and we will confirm availability and lead time.

Tool Steel Powder Grades

Tool Steel powders supplied
Grade	UNS	Specification	Size fractions	Best for
H13	T20813	ASTM A681 for the wrought equivalent	5-25 µm · 15-45 µm · 15-53 µm · 45-105 µm · 53-105 µm · 45-150 µm · 53-150 µm	Die-casting dies
Maraging 18Ni300	1.2709 / X3NiCoMoTi 18-9-5	Supplied to producer specification; wrought equivalent per DIN 1.2709	5-25 µm · 15-45 µm · 15-53 µm · 45-105 µm · 53-105 µm · 45-150 µm · 53-150 µm	Injection mould inserts with conformal cooling

H13 Tool Steel Powder

Holds hardness at temperature and resists thermal fatigue, so it survives the heat-and-quench cycling that destroys ordinary tool steel in die casting.

Applications: Die-casting dies, hot forging tooling, extrusion dies, and repair cladding of worn tool surfaces.

H13 powder details

Maraging Steel Powder (18Ni300)

Prints soft and ages to over 1900 MPa in a single low-temperature step, with almost no distortion. That combination is why injection mould tooling is printed in it.

Applications: Injection mould inserts with conformal cooling, die-casting tooling, and high-strength aerospace hardware.

Maraging 18Ni300 powder details

Should I use H13 or maraging steel powder?

Use H13 where the tool runs hot and cycles, as in die casting, hot forging and extrusion, because it holds hardness at temperature and resists thermal fatigue. Use maraging 18Ni300 for injection mould inserts, where you want extreme hardness, easy machining before ageing and almost no distortion during it. H13 for heat, maraging for hardness and dimensional stability.

Frequently Asked Questions

H13, T20813; and Maraging 18Ni300, 1.2709 / X3NiCoMoTi 18-9-5. Both are supplied in the standard additive manufacturing size fractions.

5-25 µm, 15-45 µm, 15-53 µm, 45-105 µm, 53-105 µm, 45-150 µm, 53-150 µm. All are supplied, held in stock or arranged with the manufacturer depending on quantity. The cut follows the process: 5-25 µm and 15-53 µm for laser powder-bed fusion and metal injection moulding, 45-105 µm for electron beam melting, 45-150 µm for directed energy deposition, and 53-150 µm for thermal spray.

Chemical analysis, particle size distribution to ASTM B822, apparent and tap density, and Hall or Carney flow rate, with ISO/ASTM 52907 reporting available on request.

Request a Quotation

Send the grade, particle size cut and quantity for a quote with lead time. Call +91 7977 88 6611 or email info@auricoalloys.com.

Minimum order 5 kg · Lead time 7 days from order confirmation.
