Ti-6Al-2Sn-4Zr-2Mo (Ti-6-2-4-2, UNS R54620) is a near-alpha titanium alloy that combines tensile strength, creep strength and toughness, with long-term stability at temperatures up to 425 °C (800 °F). Silicon up to 0.1% is frequently added to improve creep resistance. It is produced by vacuum arc, electron-beam or plasma-arc melting followed by vacuum arc remelting, and is used in gas-turbine compressor blades, discs and impellers, afterburner structures and airframe skin.
Table of Contents
What is Ti-6Al-2Sn-4Zr-2Mo (Ti-6-2-4-2) Sheets?

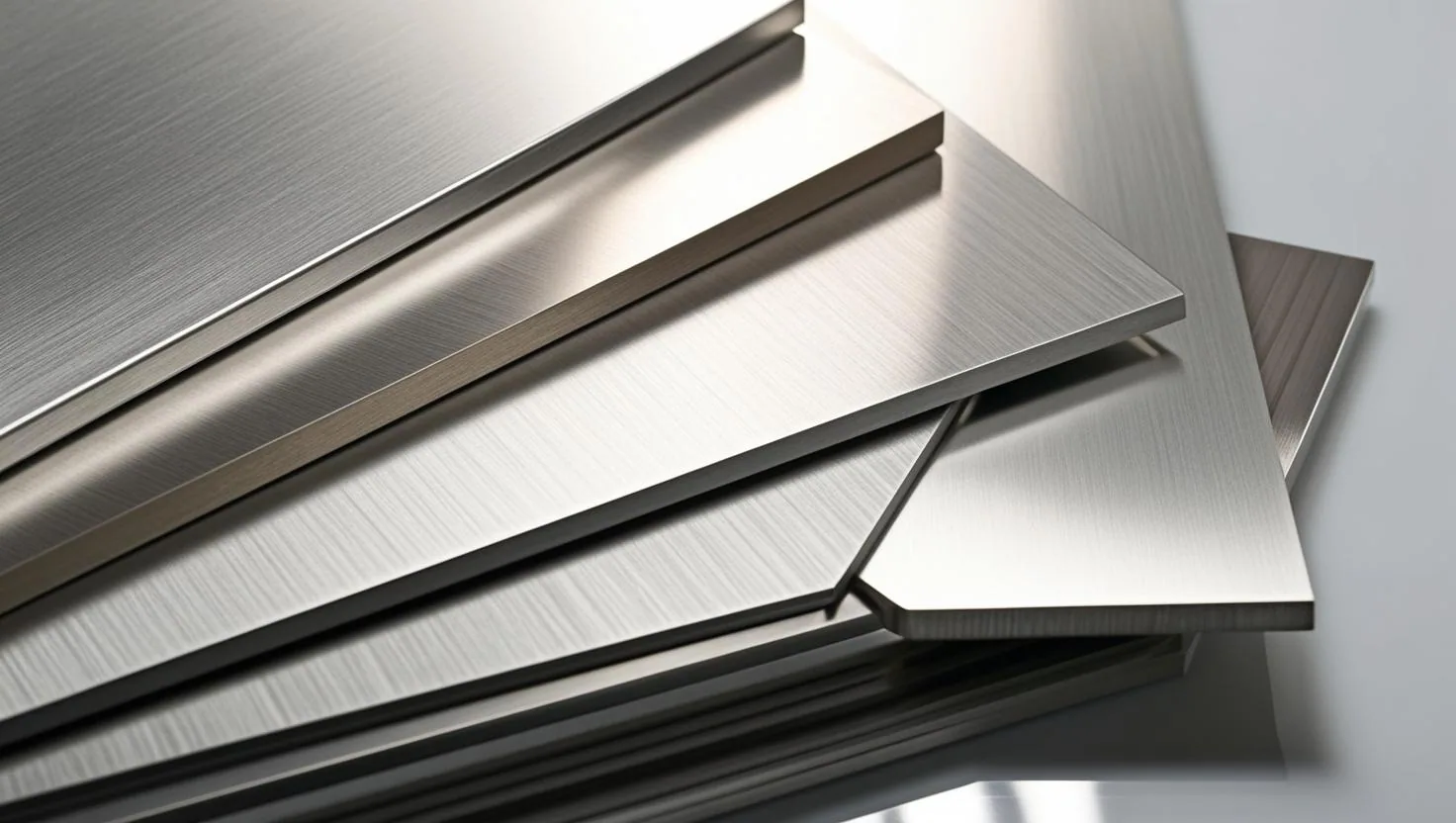

Ti-6Al-2Sn-4Zr-2Mo (Ti-6-2-4-2) is a near-alpha, high-strength titanium alloy (UNS R54620). Aurico Alloys LLP supplies it as sheets from Mumbai, India, cut to size and certified to EN 10204 3.1. Material is supplied against the AMS / ASTM specification for the form ordered.
Size Range & Supply
| Grade / Designation | Ti-6Al-2Sn-4Zr-2Mo (Ti-6-2-4-2) |
|---|---|
| UNS Number | R54620 |
| Product Form | Sheets |
| Size Range | Made to order; quoted against the mill programme in force at the time of enquiry. |
| Condition / Finish | Annealed; pickled or ground to requirement. |
| Certification | EN 10204 3.1 mill test certificate. |
| Packaging | Wooden cases or as required for export. |
The applicable specification for this form is shown in the Equivalent Grades & Standards table below.
Equivalent Grades & Designations
| Property | Value |
|---|---|
| UNS number | R54620 |
| Density | 4.54 g/cm3 |
| Melting range | 1588-1716 °C |
| Beta transus | 1825 °F (± 25 °F) |
| Plate, sheet and strip specification | Mill specification |
Identifiers and physical constants for Titanium Ti-6-2-4-2. A dash means no such designation is published for this grade.
Chemical Composition of Ti-6Al-2Sn-4Zr-2Mo (Ti-6-2-4-2) Sheets
| Element | Min (%) | Max (%) |
|---|---|---|
| Aluminium (Al) | 5.50 | 6.50 |
| Tin (Sn) | 1.80 | 2.20 |
| Molybdenum (Mo) | 1.80 | 2.20 |
| Zirconium (Zr) | 3.60 | 4.40 |
| Iron (Fe) | — | 0.25 |
| Oxygen (O) | — | 0.15 |
| Nitrogen (N) | — | 0.05 |
| Carbon (C) | — | 0.05 |
| Hydrogen (H) | — | 0.0125 |
| Silicon (Si) | — | 0.1 |
| Titanium (Ti) | — | Balance |
Composition limits for Titanium Ti-6-2-4-2. These are specification limits for the grade, not measured values for a lot; the mill test certificate supplied with your order states the actual analysis.
Applications & Uses of Ti-6Al-2Sn-4Zr-2Mo (Ti-6-2-4-2)
| Industry / Application | Use |
|---|---|
| Gas turbine engines | Compressor blades, discs and impellers, where creep strength and long-term stability to 425 °C are needed. |
| Afterburner structures | Retains strength and stability at elevated service temperatures. |
| Airframe | Skin and structural sections needing a high strength-to-weight ratio at temperature. |
